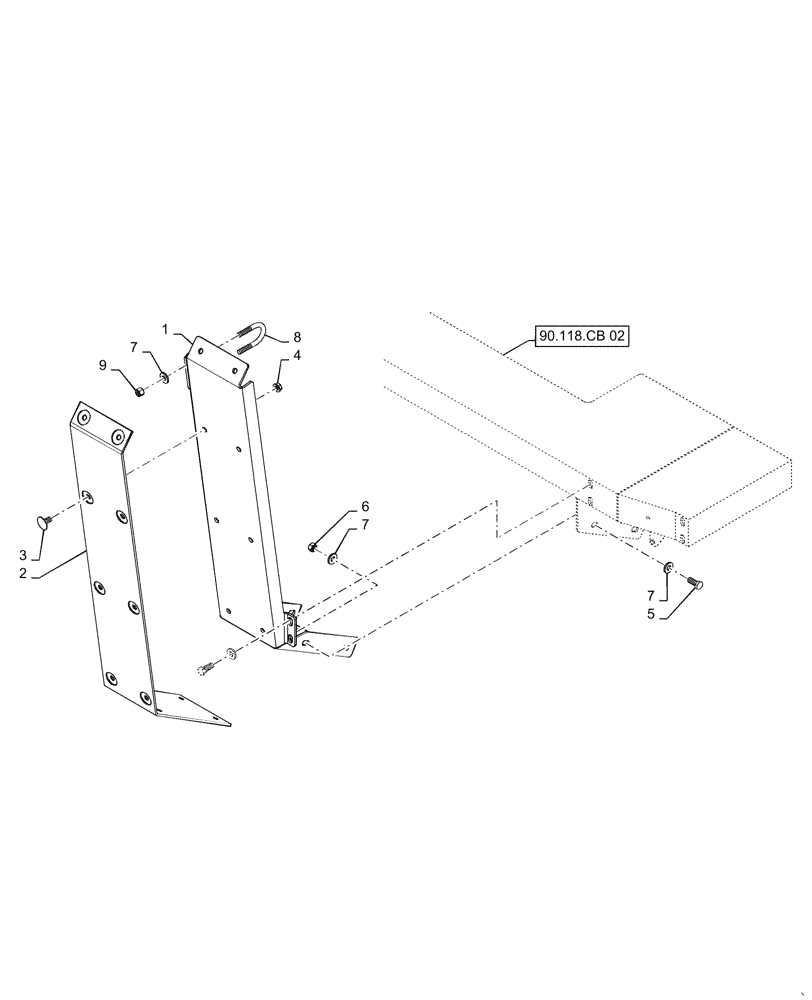

Запчасти Case IH PATRIOT 4440 (39.100.AT[04]) - WALKWAY PROTECTOR, 90/100 (39) - FRAMES AND BALLASTING

1

87265733

GUIDE

Boom

1шт.

2

BN313030

GUIDE

Liner, Boom

1шт.

3

BN50014

BOLT

5/16" - 18 x 3/4"

12шт.

4

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

12шт.

5

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

18шт.

8

87267464

U-BOLT

3/8" - 16 x 1.5" ID x 2.50"

1шт.

9

87343970

NUT,3/8"-16, G8, DOR

2шт.
