(39.100.AT[03]) - MIDDLE WALKWAY HANDRAIL, 90 - 100 BOOMS

Запчасти Case IH PATRIOT 4440 (39.100.AT[03]) - MIDDLE WALKWAY HANDRAIL, 90 - 100 BOOMS (39) - FRAMES AND BALLASTING

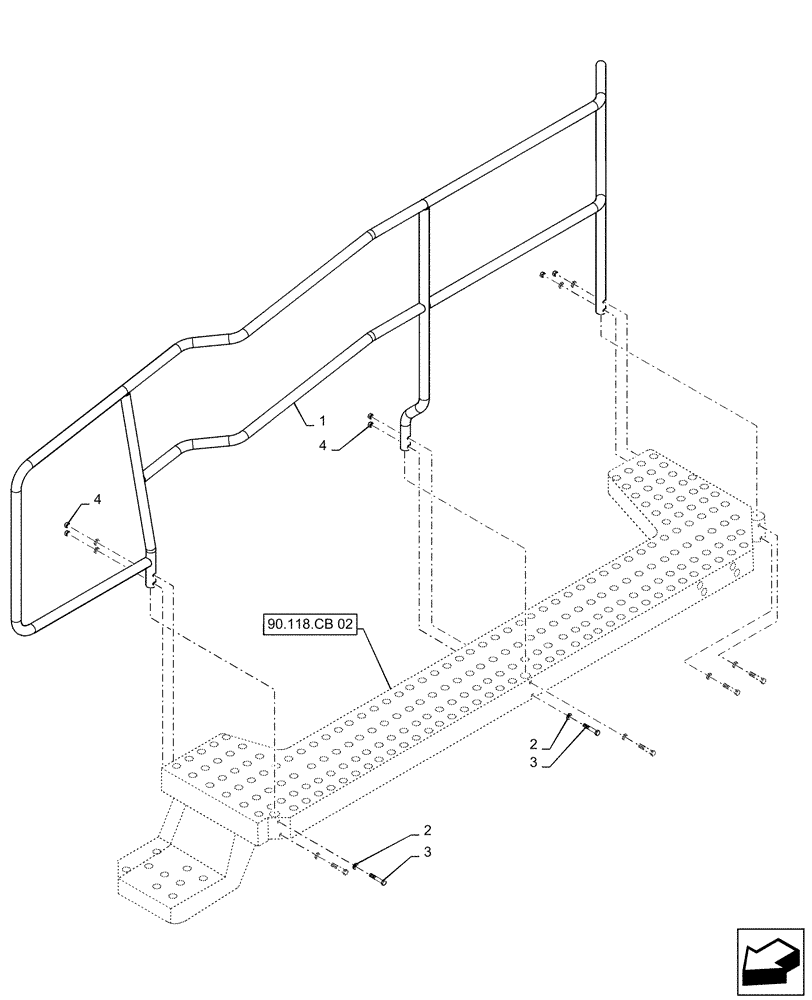

Схема запчастей Case IH PATRIOT 4440 - (39.100.AT[03]) - MIDDLE WALKWAY HANDRAIL, 90 - 100 BOOMS (39) - FRAMES AND BALLASTING
2
1
4
3
4
90.118.cb 02
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87265527

HANDRAIL

Mid

1шт.

2

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

10шт.

3

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

6шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

Выбрано товаров: 4
