Запчасти Case IH PATRIOT 4440 (36.100.AC[01]) - AIR TANK AND REGULATOR (36) - PNEUMATIC SYSTEM

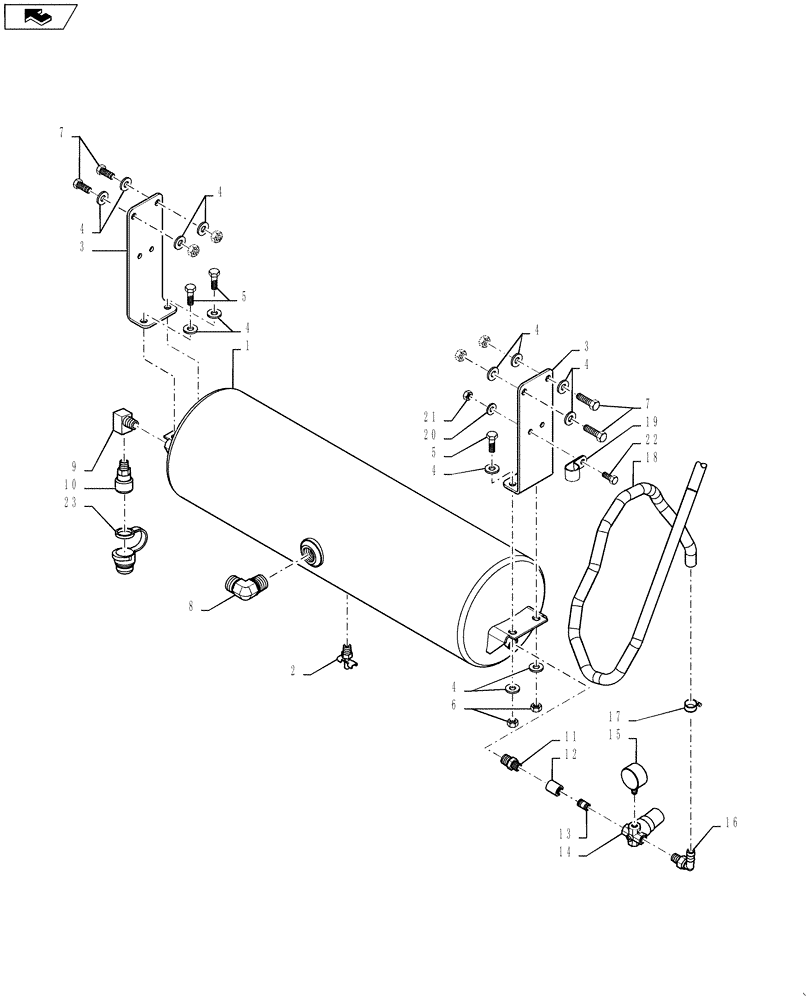

Схема запчастей Case IH PATRIOT 4440 - (36.100.AC[01]) - AIR TANK AND REGULATOR (36) - PNEUMATIC SYSTEM
20
8
3
14
19
11
4
23
10
4
5
21
5
2
1
4
3
7
4
17
4
6
13
7
9
18
15
home
12
16
22
4
4

Артикул

Название

Примечание

Количество

1

BN316553

AIR TANK

8" Diameter x 32"

1шт.

2

217-92

COCK

Drain

1шт.

3

47679783

MOUNT

Air Tank

2шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

5

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

7

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

8

BN319011

FITTING

NPT, - 12M - 8F, 90 DEG

1шт.

9

87032210

ELBOW

90º Street, 3/8" NPT x 1/4" NPT, BRS

1шт.

10

BN2393326

COUPLING

1/4" Female Body, Will Mate With Industrial Interchange 1/4" Male Body

1шт.

11

BN324303

LUBE NIPPLE

Red, 3/8" NPT x 1/4" NPT, Stainless Steel

1шт.

12

BN73015

COUPLING

1/4" NPT, Full, Stainless Steel

1шт.

13

BN1420036

NIPPLE

1/4" NPT, Close, Stainless Steel

1шт.

14

87388151

REGULATOR

Air Pressure

1шт.

15

86986803

GAUGE

0 - 30 PSI, 1/8" NPT

1шт.

16

87265091

FITTING

1/4" NPT x 1/2" Hose Barb, 90º, Poly

1шт.

17

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.

18

BN54239

HOSE,12.7mm ID x 3048mm L

Black, 1/2" EPDM, Discharge, Air Supply Hose To Center Section Solenoid

11FTшт.

19

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

20

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

21

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

22

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

23

87267960

COVER

Air Chuck, Dust

1шт.

Выбрано товаров: 23
