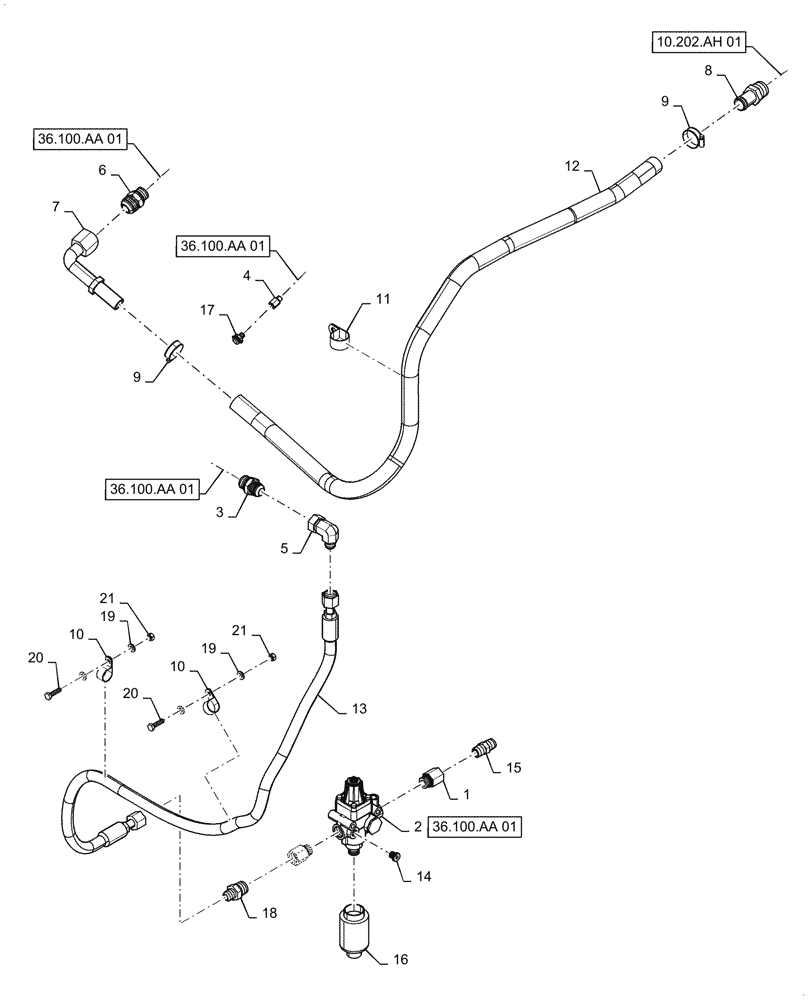

Запчасти Case IH PATRIOT 4440 (36.100.AA[02]) - AIR COMPRESSOR, GOVERNOR (36) - PNEUMATIC SYSTEM

1

87271484

FITTING

M22 x 1/2 NPTF

2шт.

2

87272409

PNEUMATIC VALVE

Air Compressor Unloader

1шт.

3

84173221

ADAPTER

-12MJ x M26 - 1.5 ORB

1шт.

4

84315910

ADAPTER

M12 x 1/8 NPT

1шт.

5

87612748

ELBOW

90D Swivel, 37FL, 5/8 x 3/4

1шт.

6

84175115

ADAPTER

M26 - 1.5 x -16 MJIC

1шт.

7

84175116

FITTING

16 - 16FJX -90D Short

1шт.

8

217-156

FITTING,1" Hose Barb x 1" Male NPTF

1шт.

9

BN310447

HOSE CLAMP

#20, 304 SS

2шт.

10

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

11

86639002

CLAMP,34.9mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

12

408845A1

HOSE

1" x 56"

1шт.

13

BN314858

HOSE,15.88mm ID x 1270mm L

1шт.

14

87272532

PLUG

M12 x 1.5, Hollow Hex

1шт.

15

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

16

87590733

MUFFLER

Air Unload Valve

1шт.

17

84159148

BREATHER

Air Compressor

1шт.

18

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

1шт.

19

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

20

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

21

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.
