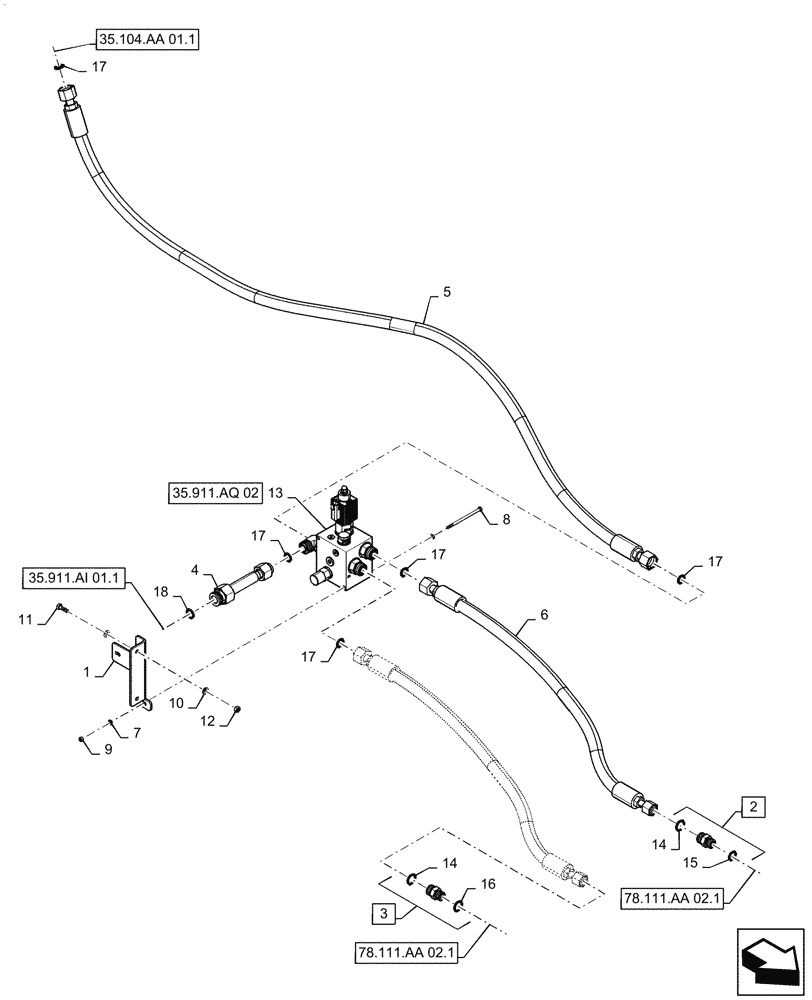

Запчасти Case IH PATRIOT 4440 (35.911.AQ[01.2]) - PRODUCT PUMP, HYDRAULIC VALVE LINES, ASN YGT044000 (35) - HYDRAULIC SYSTEMS

1

47965606

MOUNT

Valve

1шт.

2

BN307930

ADAPTER

Straight, Jump, 1" -14 ORFS x 3/4" -16 ORB, Incl 14, 15

1шт.

3

BN302653

FITTING

Straight, 1" -14 ORFS x 7/8" -14 ORB, Incl 14, 16

1шт.

4

47965566

TUBE

1" OD x 7 3/8" Long, Product Pump Valve to 3 Bank Control Valve

1шт.

5

47923829

HYDRAULIC HOSE

1 3/16 -12 ORFS Swivel, Straight Short x 1 -3/16 -12 ORFS Swivel Straight Short x 3/4" ID x 85" Long, Product Pump Valve to Dedicated Gear Pump

1шт.

6

47923559

HYDRAULIC HOSE

1 -14 ORFS Swivel, Straight Short x 1 3/16 -12 ORFS Swivel, Straight Short x 3/4" ID x 36" Long, Product Pump Valve to Product Pump

2шт.

7

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

8

86980371

BOLT,Hex, M6 x 110mm, Cl 8.8

2шт.

9

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

10

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

11

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

13

84333717

VALVE

Product Pump, With Fittings

1шт.

See Fig 35.911.AQ 02 For Service

1шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1", ORFS

2шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.

16

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1 - 3/16", ORFS

3шт.

18

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.
