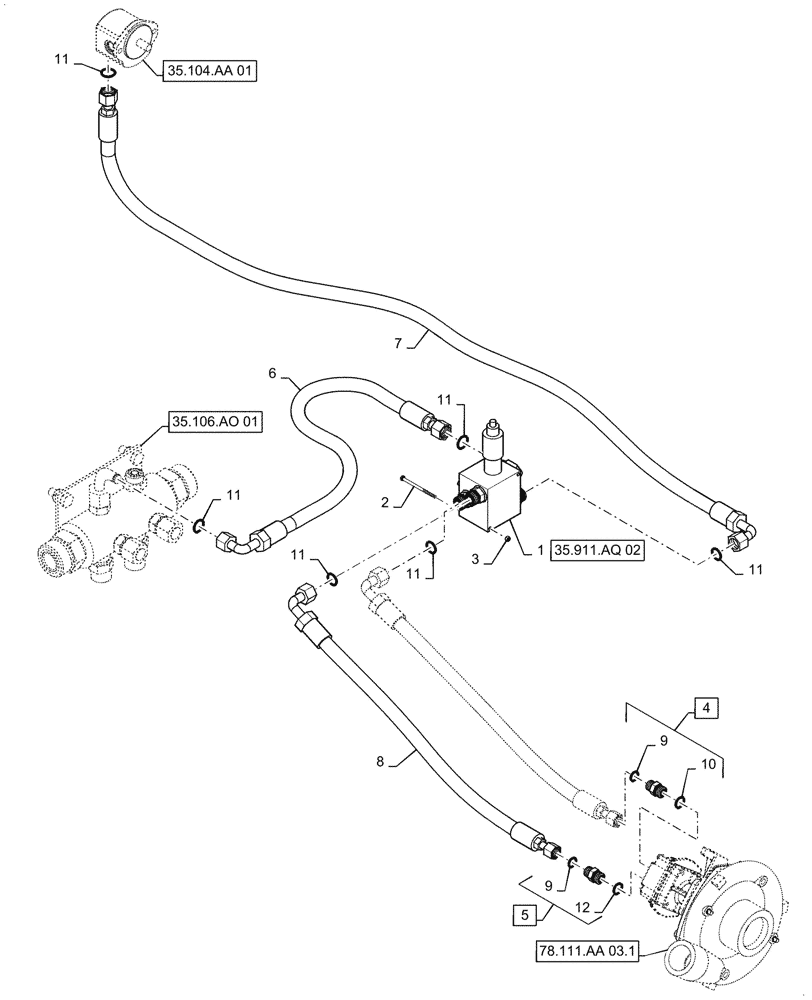

Запчасти Case IH PATRIOT 4440 (35.911.AQ[01.1]) - PRODUCT PUMP, HYDRAULIC VALVE LINES, ASN YGT042518, BSN YGT044001 (35) - HYDRAULIC SYSTEMS

1

84333717

VALVE

Product Pump, With Fittings

1шт.

See Fig 35.911.AQ 02 For Service Parts

1шт.

2

87341834

BOLT,Hex, M6 - 1 x 100mm, Cl 8.8, DOR

2шт.

3

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

4

BN307930

ADAPTER

1" - 14 ORFS x 3/4" - 16 ORB, Incl 9, 10

1шт.

5

BN302653

FITTING

1" - 14 ORFS x 7/8" - 14 ORB, Incl 9, 12

1шт.

6

BN324672

HOSE ASSY.

1 - 3/16" -12 ORFS Swivel x 1 - 3/16" -12 ORFS Swivel Short Elbow x 3/4" x 36", Product Pump Valve to Return Manifold

1шт.

7

86986097

HOSE

1 - 3/16" - 12 ORFS Swivel x 1 - 3/16" - 12 ORFS Swivel Short Elbow x 3/4" x 90", Gear Pump to Product Pump Valve

1шт.

8

84329271

HOSE

1" - 14 ORFS Swivel x 1 - 3/16" - 12 ORFS Swivel Short Elbow x 3/4" x 39", Product Pump Valve to Product Pump

2шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1" - 14, ORFS

2шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4" - 16, ORB

2шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1 3/16" - 12, ORFS

2шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8" - 14, ORB

1шт.
