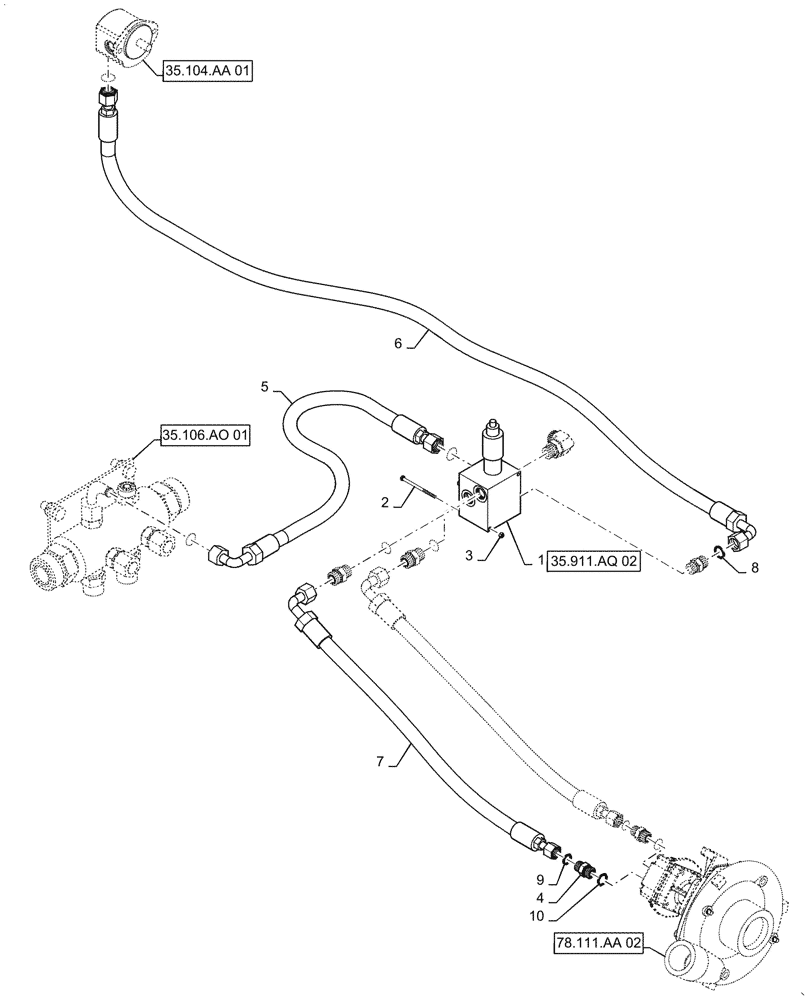

Запчасти Case IH PATRIOT 4440 (35.911.AQ[01]) - PRODUCT PUMP HYDRAULIC CIRCUIT, BSN YGT042519 (35) - HYDRAULIC SYSTEMS

1

84333717

VALVE

Product Pump, With Fittings

1шт.

See Fig 35.962.01 For Service Parts

1шт.

2

87341834

BOLT,Hex, M6 - 1 x 100mm, Cl 8.8, DOR

M6 x 100mm, 8.8, DOR

2шт.

3

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

4

BN307930

ADAPTER

1" - 14 ORFS x 3/4" - 16 ORB

2шт.

5

BN324672

HOSE ASSY.

1 - 3/16" -12 ORFS Swivel x 1 - 3/16" -12 ORFS Swivel Short Elbow x 3/4" x 36", Product Pump Valve to Return Manifold

1шт.

6

86986097

HOSE

1 - 3/16" - 12 ORFS Swivel x 1 - 3/16" - 12 ORFS Swivel Short Elbow x 3/4" x 90", Gear Pump to Product Pump Valve

1шт.

7

84329271

HOSE

1" - 14 ORFS Swivel x 1 - 3/16" - 12 ORFS Swivel Short Elbow x 3/4" x 39", Product Pump Valve to Product Pump

2шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1 - 3/16", ORFS

6шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1", ORFS

2шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.
