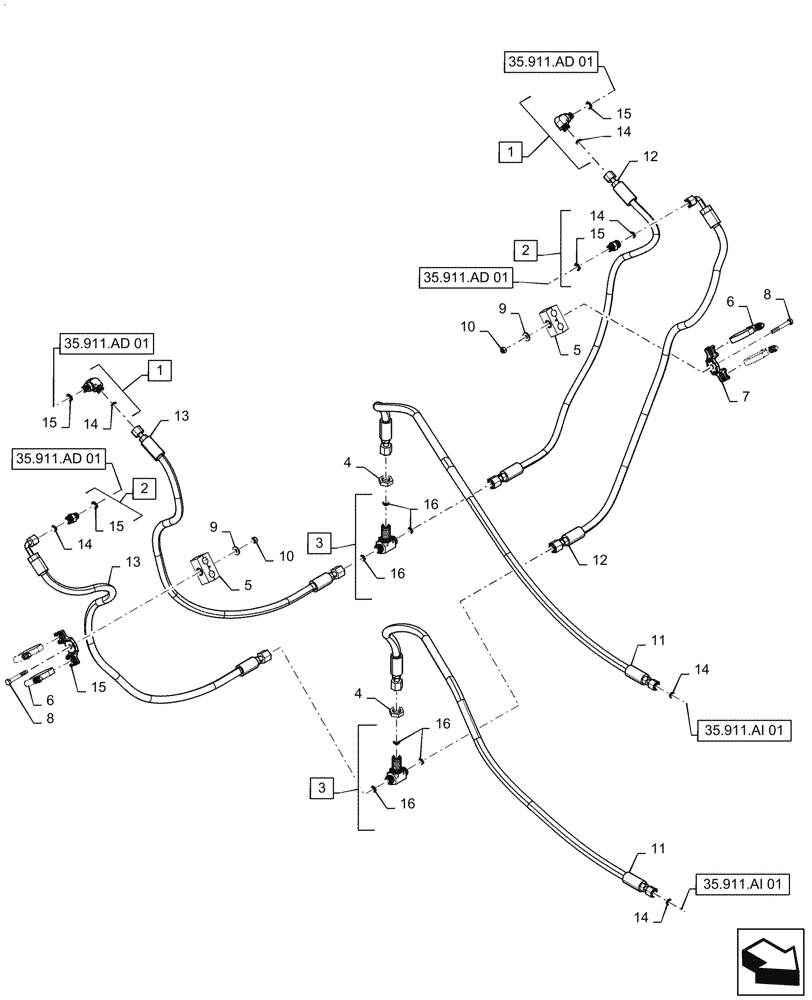

Запчасти Case IH PATRIOT 4440 (35.911.AN[01.1]) - BOOM MAST CYLINDERS, HYDRAULIC LINES, ASN 044000 (35) - HYDRAULIC SYSTEMS

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 14, 15

2шт.

2

BN302646

FITTING

Straight, 11/16-16 ORFS x 9/16-18 ORB, Incl 14, 15

2шт.

3

47963425

UNION TEE

13/16-16 ORFS, Incl 16

2шт.

4

47963428

NUT

13/16-16 Bulkhead Locknut

2шт.

5

87000921

HOSE CLAMP

Double 3/8" OD Hose

2шт.

6

82039349

CLAMP,60mm ID - 80mm ID x 12mm W, Unlined

4шт.

7

84360209

BASE

Tie

2шт.

8

86980386

BOLT,Hex, M8 - 1.25 x 60mm, Cl 8.8, DOR

2шт.

9

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

11

47977896

HYDRAULIC HOSE

13/16-16 ORFS Swivel Straight Short x 11/16-16 ORFS Swivel Straight Short x 3/8" ID x 57 1/4" Long, Boom Height Valve To Tee

2шт.

12

47977894

HYDRAULIC HOSE

13/16-16 ORFS Swivel Straight Short x 11/16-16 ORFS Swivel Straight Short x 3/8" ID x 44 7/8" Long, Tee To Boom Height Cylinder

2шт.

13

47977895

HYDRAULIC HOSE

13/16-16 ORFS Swivel Straight Short x 11/16-16 ORFS Swivel Elbow Short x 3/8" ID x 47" Long, Tee To Boom Height Cylinder

2шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.
