(35.911.AN[01]) - BOOM MAST CYLINDERS, HYDRAULIC LINES, BSN YGT044001

Запчасти Case IH PATRIOT 4440 (35.911.AN[01]) - BOOM MAST CYLINDERS, HYDRAULIC LINES, BSN YGT044001 (35) - HYDRAULIC SYSTEMS

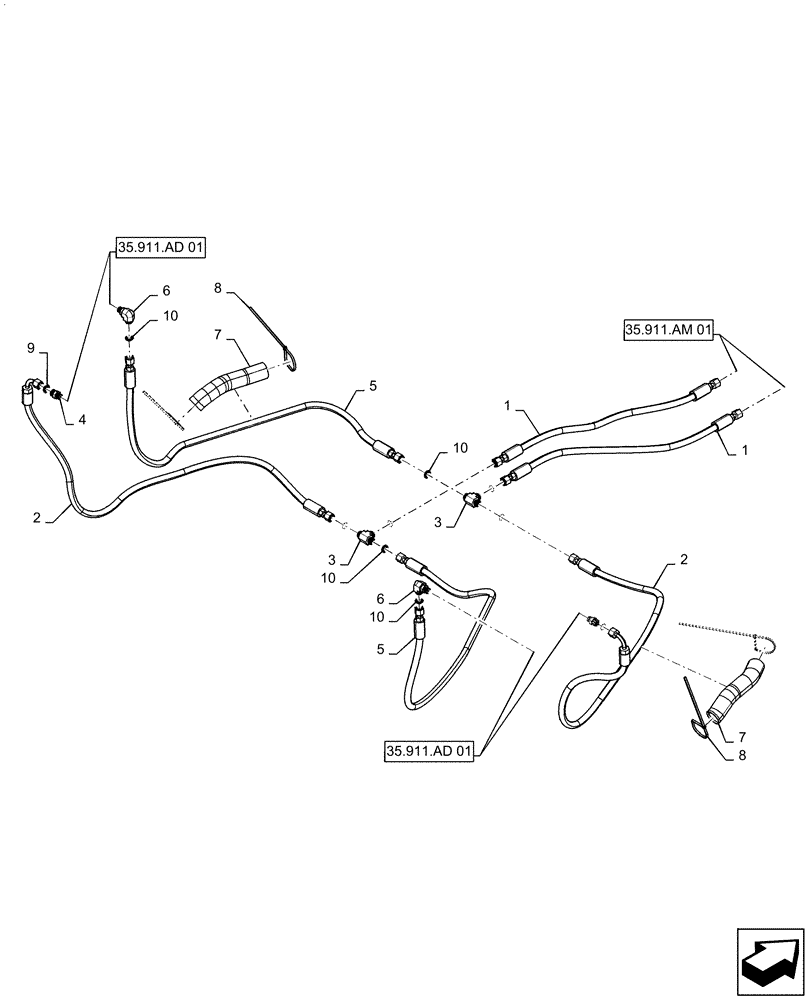

Схема запчастей Case IH PATRIOT 4440 - (35.911.AN[01]) - BOOM MAST CYLINDERS, HYDRAULIC LINES, BSN YGT044001 (35) - HYDRAULIC SYSTEMS
7
10
10
10
2
35.911.am 01
7
6
8
4
5
35.911.ad 01
6
9
5
35.911.ad 01
1
3
1
3
2
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313336

HOSE

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel x 3/8" ID x 30" Long, Boom Height Valve To Tee

2шт.

2

BN313337

HOSE

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 50" Long, Tee To Boom Height Cylinder

2шт.

3

BN302512

FITTING

11/16" - 16 ORFS

2шт.

4

BN302646

FITTING

11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

5

86986082

HOSE

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel x 3/8" ID x 50" Long, Tee To Boom Height Cylinder

2шт.

6

BN302553

ELBOW

11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

7

342108A1

HOSE PROTECTION

Bulk, Cut To Length

2шт.

8

BN570007

STRAP

Black, 14 - 1/2"

4шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

12шт.
