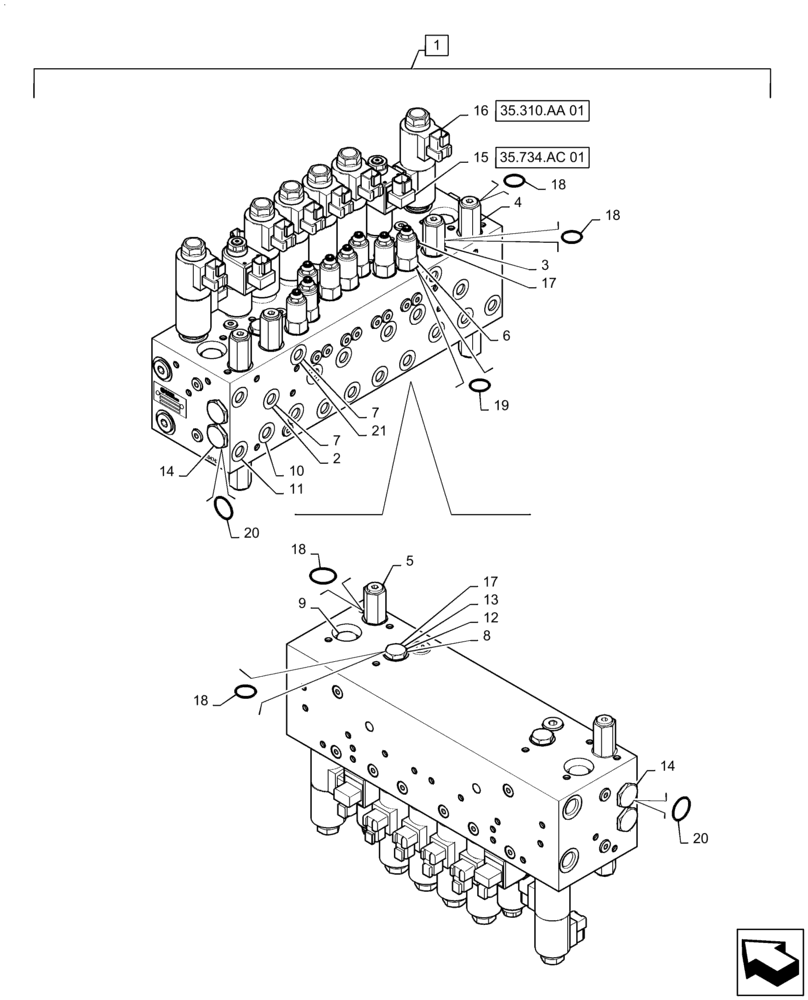

Запчасти Case IH PATRIOT 4440 (35.911.AJ[04]) - 8 BANK CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

87749946

VALVE

8 - Bank, Without Fittings, Incl 2 - 21

1шт.

2

87758330

ORIFICE

Disk, .041"

4шт.

3

87758329

VALVE

Relief, 200 PSI

2шт.

4

87758328

VALVE

Relief, 1500 PSI

2шт.

5

87758327

VALVE

Relief, 3000 PSI

2шт.

6

84141863

VALVE

Counterbalance, 3000 PSI

8шт.

7

87758326

RETAINER

Snap Ring, Valve

6шт.

8

87758325

PISTON

Valve Bank

2шт.

9

87758324

PISTON

Valve Bank

2шт.

10

87758323

ORIFICE

0.039"

2шт.

11

87758322

ORIFICE

0.047"

2шт.

12

87758321

ORIFICE

0.071"

2шт.

13

87758320

RING

Backup, Teflon

8шт.

14

87473321

VALVE

Shuttle

4шт.

15

87758319

SOLENOID VALVE

With Coil, Boom Level

2шт.

See Fig 35.734.AC 01 For service Parts

1шт.

16

87473320

VALVE

Proportional, Boom Fold

6шт.

See Fig 35.310.AA 01 For Service Parts

1шт.

17

87758336

VALVE

Check

8шт.

18

87472226

SEAL KIT

One Seal Kit Needed Per Valve, Used on Ref 3 - 5, 17

1шт.

19

84142309

SEAL KIT

One Seal Kit Needed Per Valve, Used on Ref 6

1шт.

20

87746970

SEAL KIT

One Seal Kit Needed Per Valve, Used on Ref 14

1шт.

21

87758332

ORIFICE

Disk, .059"

2шт.
