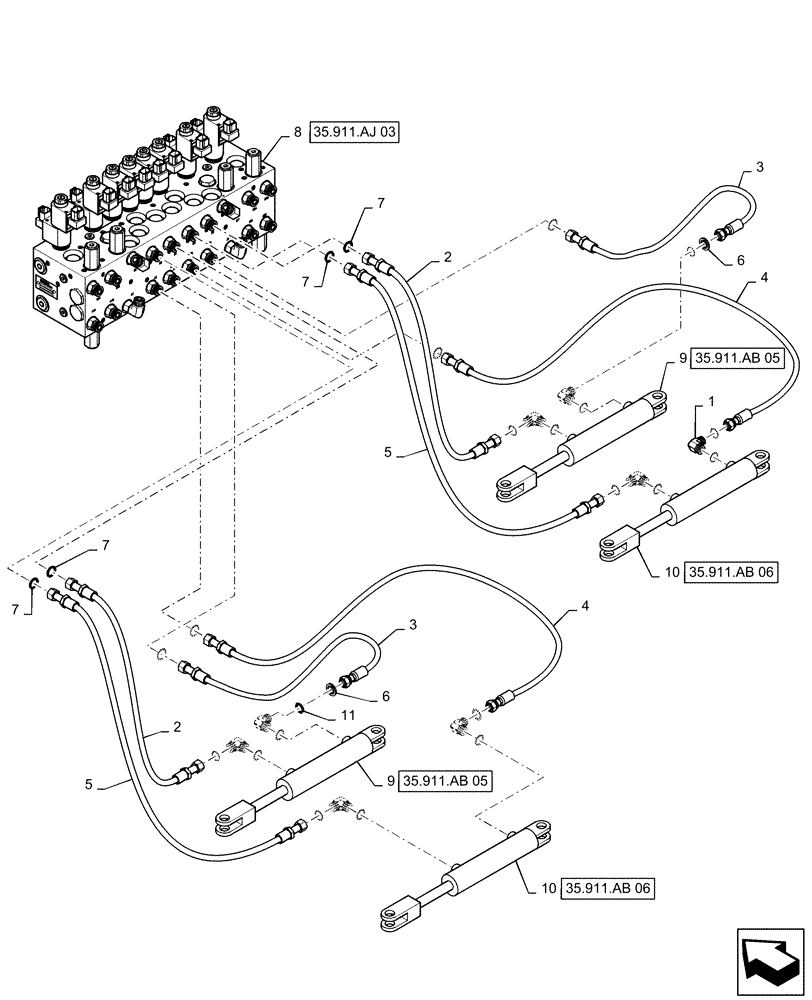

Запчасти Case IH PATRIOT 4440 (35.911.AH[04]) - OUTER BOOM FOLD HYDRAULIC LINES, 120 (35) - HYDRAULIC SYSTEMS

1

BN302554

FITTING

11/16" - 16 ORFS x 3/4" - 16 ORB x 90 Deg

8шт.

2

87600247

HOSE

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 330" Long, Valve to Mid Boom Fold Cylinder Rod End

2шт.

3

87600246

HOSE

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 310" Long, Valve to Mid Boom Fold Cylinder Base End

2шт.

4

87471716

HYDRAULIC HOSE,9.53mm ID x 13843mm L, SAE 100R17

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 545" Long, Valve to Outer Boom Fold Cylinder Base End

2шт.

5

87471717

HYDRAULIC HOSE,9.53mm ID x 14351mm L, SAE 100R17

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 565" Long, Valve to Outer Boom Fold Cylinder Rod End

2шт.

6

BN313268

ORIFICE

.042", - 6 Disk

2шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

8шт.

8

87749947

VALVE

8 - Bank, With Fittings

1шт.

See 35.911.AJ 03 For Service Parts

1шт.

9

87446384

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

Mid Boom Fold

2шт.

See 35.911.AD 03 For Service Parts

1шт.

10

87505171

HYDRAULIC CYLINDER,31.75mm Rod, 406.4mm Stroke

Outer Boom Fold

2шт.

See 35.911.AD 04 For Service Parts

1шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

8шт.
