(35.911.AH[01]) - INNER BOOM FOLD LINES, 90/100

Запчасти Case IH PATRIOT 4440 (35.911.AH[01]) - INNER BOOM FOLD LINES, 90/100 (35) - HYDRAULIC SYSTEMS

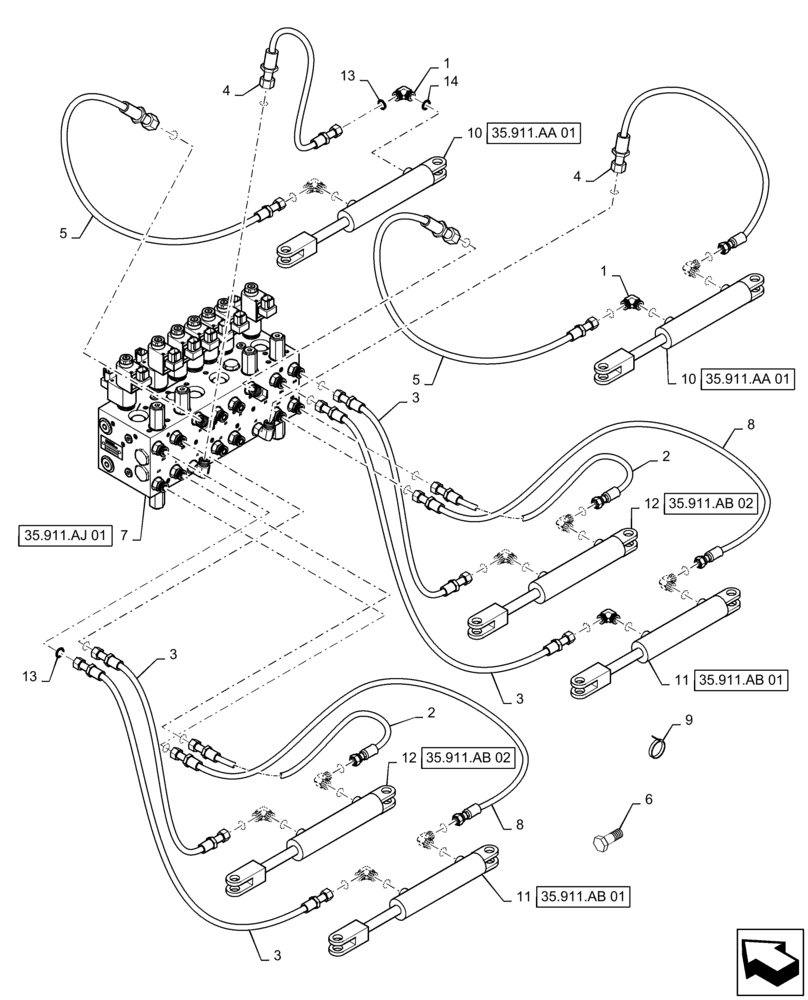

Схема запчастей Case IH PATRIOT 4440 - (35.911.AH[01]) - INNER BOOM FOLD LINES, 90/100 (35) - HYDRAULIC SYSTEMS
9
11
4
35.911.aa 01
13
35.911.ab 01
10
3
11
2
12
35.911.ab 02
5
35.911.ab 02
2
1
35.911.aa 01
13
8
3
12
7
1
3
6
5
4
8
35.911.aj 01
35.911.ab 01
14
3
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302553

ELBOW

11/16" - 16 ORFS x 9/16" - 18 ORB

12шт.

2

342591A1

HOSE ASSY.

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 40" Long, Valve to Rear Boom Fold Cylinder Base End

2шт.

3

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 64" Long, Valve to Boom Fold Cylinder Rod End

4шт.

4

BN324327

HOSE ASSY.

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel x 3/8" ID x 64" Long, Valve to Boom Level Cylinder Base End

2шт.

5

BN324328

HOSE ASSY.

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel x 3/8" ID x 90" Long, Valve to Boom Level Cylinder Rod End

2шт.

6

86980419

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

7

87746154

CONTROL VALVE

6 - Bank With Fittings, Boom Control

1шт.

See 35.911.AJ 01 For Service Parts

1шт.

8

84164481

HOSE,9.53mm ID x 1066mm L, SAE 100R17

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 42" Long, Valve to Front Boom Fold Cylinder Base End

2шт.

9

BN570007

STRAP

Black, 14 - 1/2"

20шт.

10

87266461

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 533.4mm Stroke

Boom Level, 3.00" x 21" x 1.50"

2шт.

See 35.911.AA 01 For Service Parts

1шт.

10

87266461R

REMAN-HYD CYLINDER

PATRIOT 3340 PATRIOT SPRAYER - TIER 4B, Boom Level (2/14-)

2шт.

10

87266461C

CORE-HYD CYLINDER

Return Number

2шт.

11

84188920

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 525.53mm Stroke

Inner Boom Fold, Front, 2.50" x 20.69" x 1.38"

2шт.

See 35.911.AB 01 For Service Parts

1шт.

12

87266460

CYLINDER,Double Acting, 34.92mm Rod, 549.4mm Stroke

Inner Boom Fold, Rear, 2.50" x 21.62" x 1.375"

2шт.

See 35.911.AB 02 For Service Parts

1шт.

12

87266460R

REMAN-HYD CYLINDER

Inner Boom Fold, Rear, 2.50" x 21.62" x 1.375"

2шт.

12

87266460C

CORE-HYD CYLINDER

Return Number

2шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

24шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

12шт.

Выбрано товаров: 22
