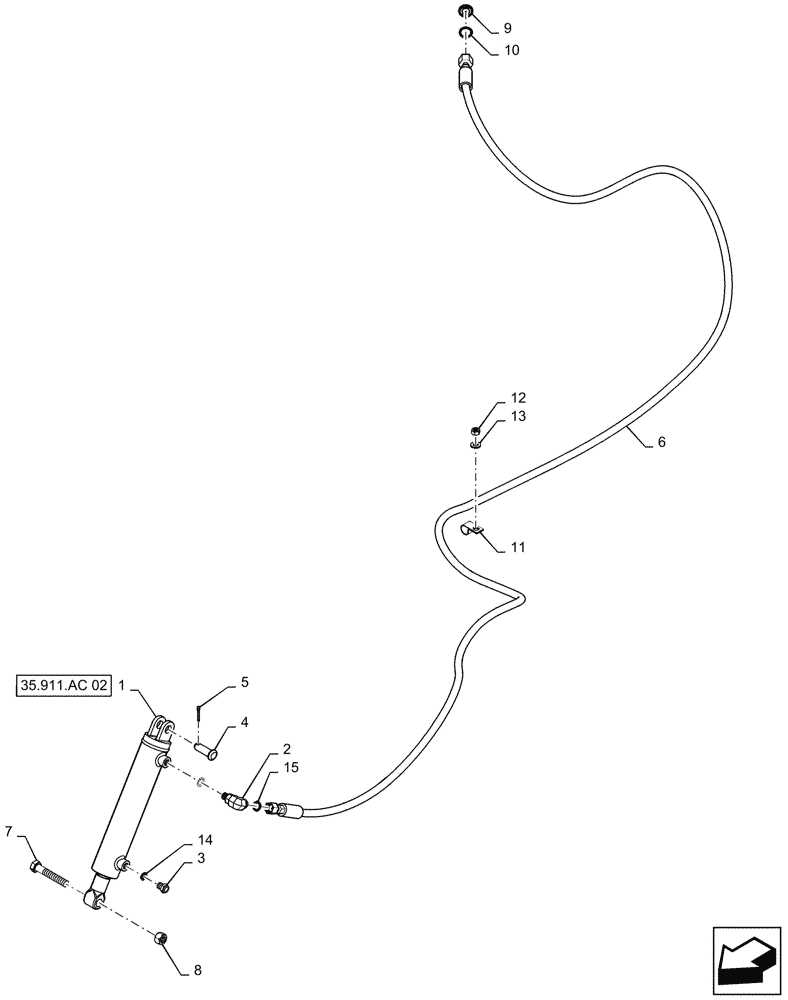

Запчасти Case IH PATRIOT 4440 (35.911.AC[01]) - LADDER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

84330410

HYDRAULIC CYLINDER,Double Acting, 19.05mm Rod, 152.4mm Stroke

38.1mm Bore x 152.4mm x 19.05mm Rod, Complete

1шт.

See 35.964.01[02] For Service Parts

1шт.

2

BN302547

90 ELBOW

9/16" - 18 ORFS x 7/16" - 20 ORB, ZND

1шт.

3

87267314

BREATHER

Sintered, -4 SAE

1шт.

4

439-1824

HEADED PIN,1/2" x 1 1/2", G2

1шт.

5

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

6

84127939

HOSE ASSY.

9/16" - 18 ORFS Short Straight x 11/16" - 16 ORFS Short Straight x 122" Long, Ladder To Park Brake Steel Line, Serial Range: -YGT044000

1шт.

6

47923794

HYDRAULIC HOSE

9/16" - 18 ORFS Short Straight x 11/16" - 16 ORFS Short Elbow x 116" Long, Ladder To Park Brake Steel Line, Start Serial: YGT044001

1шт.

7

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

1шт.

9

BN313268

ORIFICE

.042", -6 Disk

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

1шт.

11

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

12

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9mm x 17mm x 2 mm, HDN, DOR

3шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

14

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

2шт.

15

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

1шт.
