Запчасти Case IH PATRIOT 4440 (35.736.AK[01]) - BOOM LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

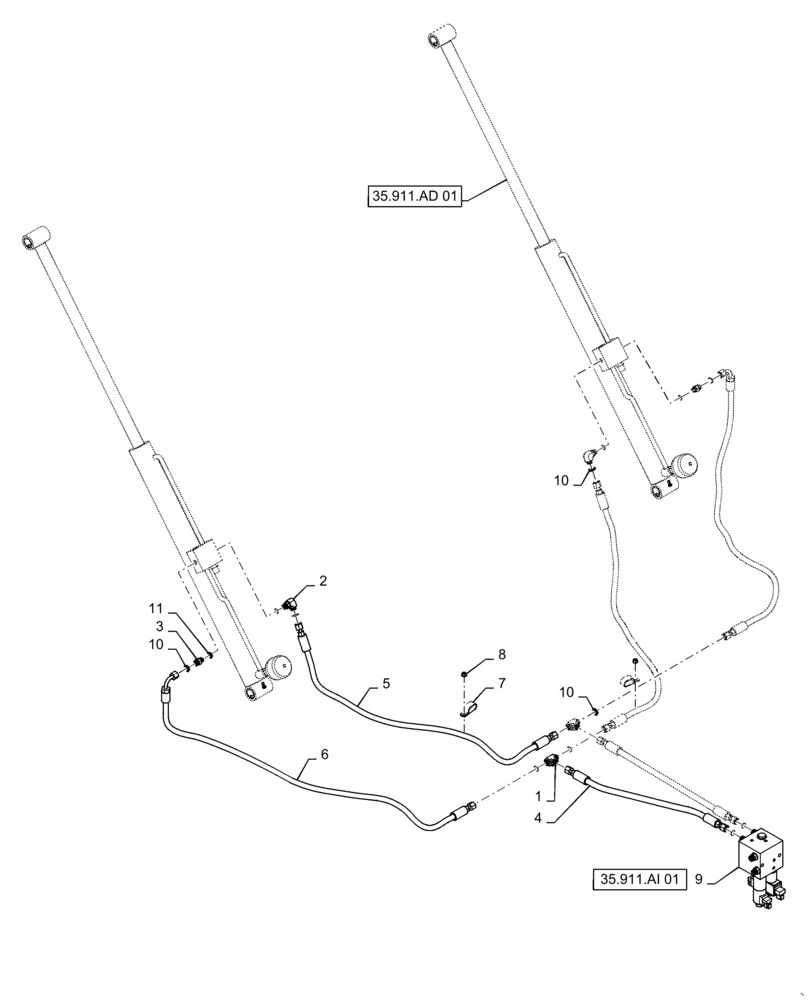

Схема запчастей Case IH PATRIOT 4440 - (35.736.AK[01]) - BOOM LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS
35.911.ad 01
1
9
3
10
6
11
7
8
5
4
10
10
2
35.911.ai 01

Артикул

Название

Примечание

Количество

1

BN302512

FITTING

11/16" - 16 ORFS

2шт.

2

BN302553

ELBOW

11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

3

BN302646

FITTING

11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

4

BN307877

HOSE ASSY.

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel x 3/8" ID x 35" Long, To Boom Height Valve Bank

2шт.

5

47877825

HYDRAULIC HOSE

11/16" -16 ORFS Swivel X 9.5 ID x 1420MM Long

2шт.

6

47877826

HYDRAULIC HOSE

11/16" -16 ORFS Swivel X 9.5 ID x 1420MM Long

2шт.

7

L101181

CLAMP,0.75" D Clamping pipes x 2

Insulated, Double

2шт.

8

87344227

SERRATED NUT

Serrated, M8, SPL, DOR

2шт.

9

87393150

CONTROL VALVE

Axle Adjust and Boom Height Valve Bank

1шт.

See Fig 35.962.02 For Service Parts

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

12шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

4шт.

Выбрано товаров: 12
