(35.735.AA[02]) - AXLE CYLINDER MOUNTING PARTS

Запчасти Case IH PATRIOT 4440 (35.735.AA[02]) - AXLE CYLINDER MOUNTING PARTS (35) - HYDRAULIC SYSTEMS

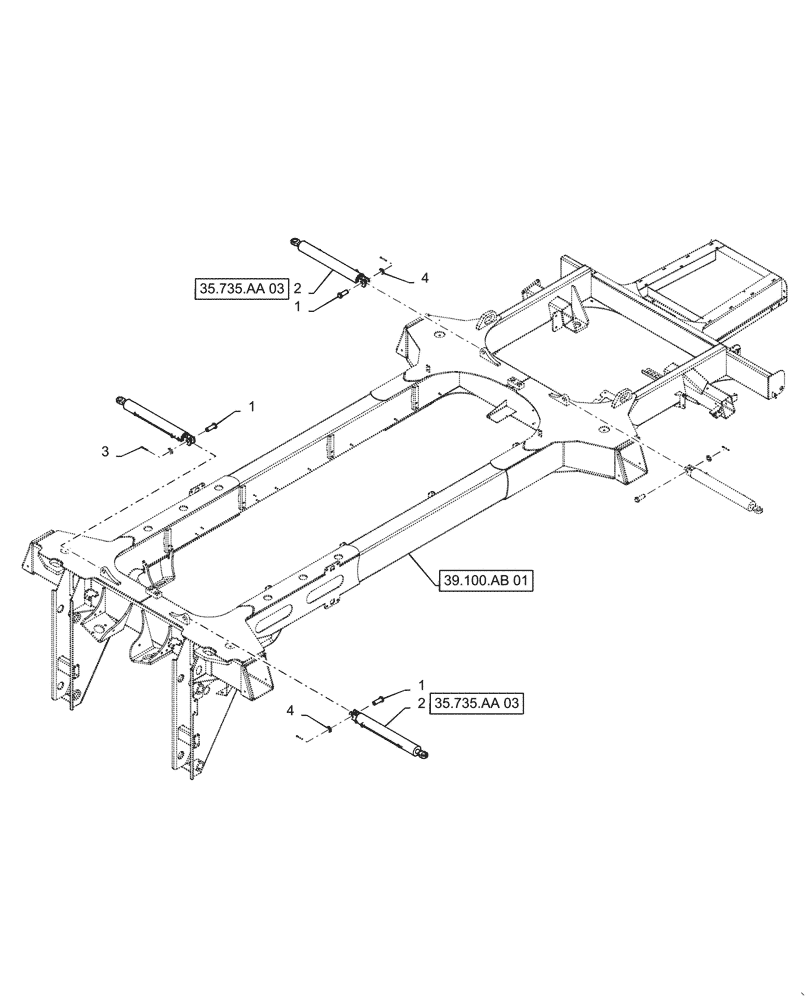

Схема запчастей Case IH PATRIOT 4440 - (35.735.AA[02]) - AXLE CYLINDER MOUNTING PARTS (35) - HYDRAULIC SYSTEMS
39.100.ab 01
3
4
1
2
4
2
1
1
35.735.aa 03
35.735.aa 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86632567

HEADED PIN,30.14mm OD x 66.55mm L

4шт.

2

87267921

CYLINDER,Double Acting, 31.75mm Rod, 469.9mm Stroke

2.50" x 18.5" x 1.25", Axle Width Cylinder, Complete

4шт.

See 35.735.AA 03 For Service Parts

1шт.

3

BN50601

PIN, SPLIT (COTTER)

3/16" x 2""

4шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

4шт.
