(35.735.AA[01.1]) - AXLE WIDTH, HYDRAULIC LINES, ASN YGT044000

Запчасти Case IH PATRIOT 4440 (35.735.AA[01.1]) - AXLE WIDTH, HYDRAULIC LINES, ASN YGT044000 (35) - HYDRAULIC SYSTEMS

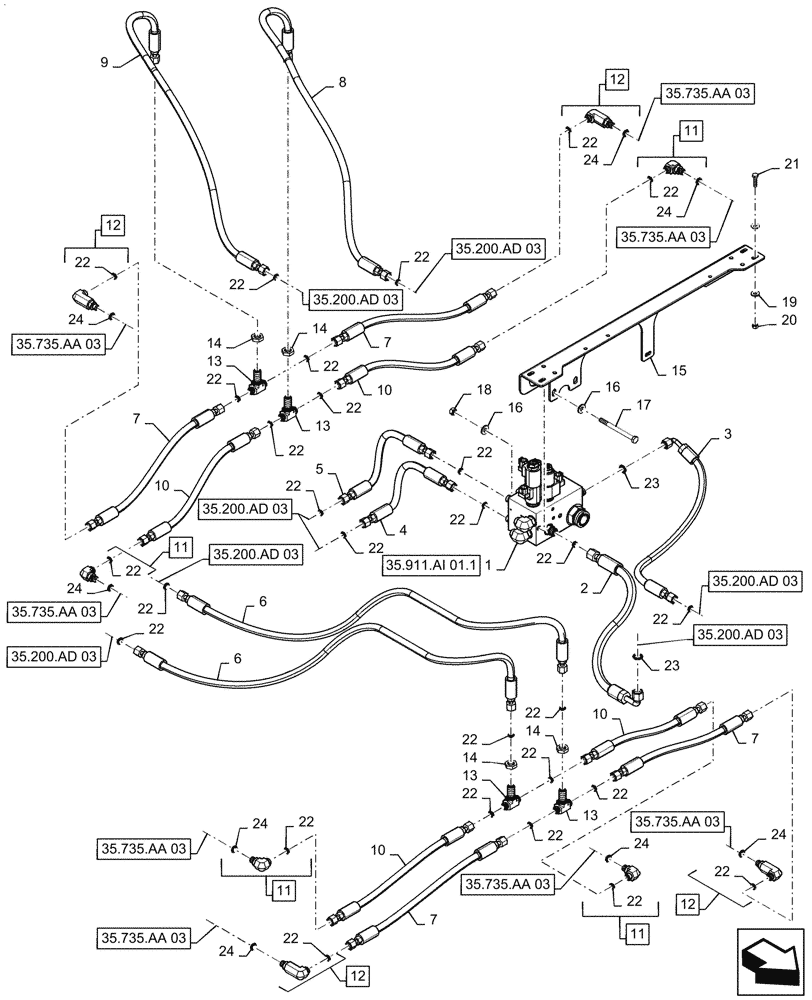

Схема запчастей Case IH PATRIOT 4440 - (35.735.AA[01.1]) - AXLE WIDTH, HYDRAULIC LINES, ASN YGT044000 (35) - HYDRAULIC SYSTEMS
35.735.aa 03
22
22
14
22
23
10
22
15
14
20
22
24
24
10
7
24
12
7
22
22
13
22
24
6
7
22
22
22
14
7
12
2
22
22
22
10
9
22
22
24
22
17
16
8
35.200.ad 03
12
1
22
11
21
18
23
4
22
22
24
22
22
22
10
24
22
14
13
24
22
16
22
22
13
11
12
6
11
3
13
11
5
22
19
35.200.ad 03
35.200.ad 03
35.200.ad 03
35.200.ad 03
35.200.ad 03
35.200.ad 03
35.911.ai 01.1
35.735.aa 03
35.735.aa 03
35.735.aa 03
35.735.aa 03
35.735.aa 03
35.735.aa 03
35.735.aa 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47938376

CONTROL VALVE

3 Bank, Complete With Fittings

1шт.

See 35.911.AI 01.1 For Service

1шт.

2

47923796

HYDRAULIC HOSE

13/16" - 16 Female ORFS Swivel Short Elbow x 13/16" - 16 Female ORFS Swivel Short Straight x 1/2" ID x 20 3/4" Long, Control Valve to Steel Line Running Forward

1шт.

3

47923799

HYDRAULIC HOSE

11/16" - 16 Female ORFS Swivel Short Elbow x 11/16" - 16 Female ORFS Swivel Short Straight x 3/8" ID x 28" Long, Control Valve to Steel Line Running Forward

1шт.

4

47971132

HYDRAULIC HOSE

11/16" - 16 Female ORFS Swivel Short Straight x 11/16" - 16 Female ORFS Swivel Short Straight x 3/8" ID x 14 3/4" Long, Control Valve to Steel Line

1шт.

5

47971133

HYDRAULIC HOSE

11/16" - 16 Female ORFS Swivel Short Straight x 11/16" - 16 Female ORFS Swivel Short Straight x 3/8" ID x 15 1/2" Long, Control Valve to Steel Line

1шт.

6

47923808

HYDRAULIC HOSE,10mm ID, 54.50in L, SAE-6

11/16" - 16 Female ORFS Swivel Short Straight x 11/16" - 16 Female ORFS Swivel Short Straight x 3/8" ID x 54 1/2" Long, Steel Lines to Front Tee

2шт.

7

47923826

HYDRAULIC HOSE

11/16" - 16 Female ORFS Swivel Short Straight x 11/16" - 16 Female ORFS Swivel Short Straight x 3/8" ID x 21" Long,Tee to Hydraulic Cylinder Elbows

4шт.

8

47923817

HYDRAULIC HOSE

11/16" - 16 Female ORFS Swivel Short Straight x 11/16" - 16 Female ORFS Swivel Short Straight x 3/8" ID x 46 7/8" Long, Steel Lines to Rear Tee

1шт.

9

47923821

HYDRAULIC HOSE

11/16" - 16 Female ORFS Swivel Short Straight x 11/16" - 16 Female ORFS Swivel Short Straight x 3/8" ID x 47 5/8" Long, Steel Lines to Rear Tee

1шт.

10

47923823

HYDRAULIC HOSE

11/16" - 16 Female ORFS Swivel Short Straight x 11/16" - 16 Female ORFS Swivel Short Straight x 3/8" ID x 19" Long,Tee to Hydraulic Cylinder Elbows

4шт.

11

BN302553

ELBOW

11/16 - 16 ORFS x 9/16 - 18 ORB, Incl 22, 24

4шт.

12

BN302419

ELBOW

11/16 - 16 ORFS x 9/16 - 18 ORB, Long Elbow, Incl 22, 24

4шт.

13

47963431

UNION TEE

11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 ORFS

4шт.

14

47963430

NUT

Bulkhead

4шт.

15

47966571

MOUNT

Control Valve

1шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

17

86980412

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

2шт.

18

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

19

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

8шт.

20

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

21

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

31шт.

23

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

8шт.

25

48075035

Hydraulic Tee

MOUNT

1шт.

26

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.
