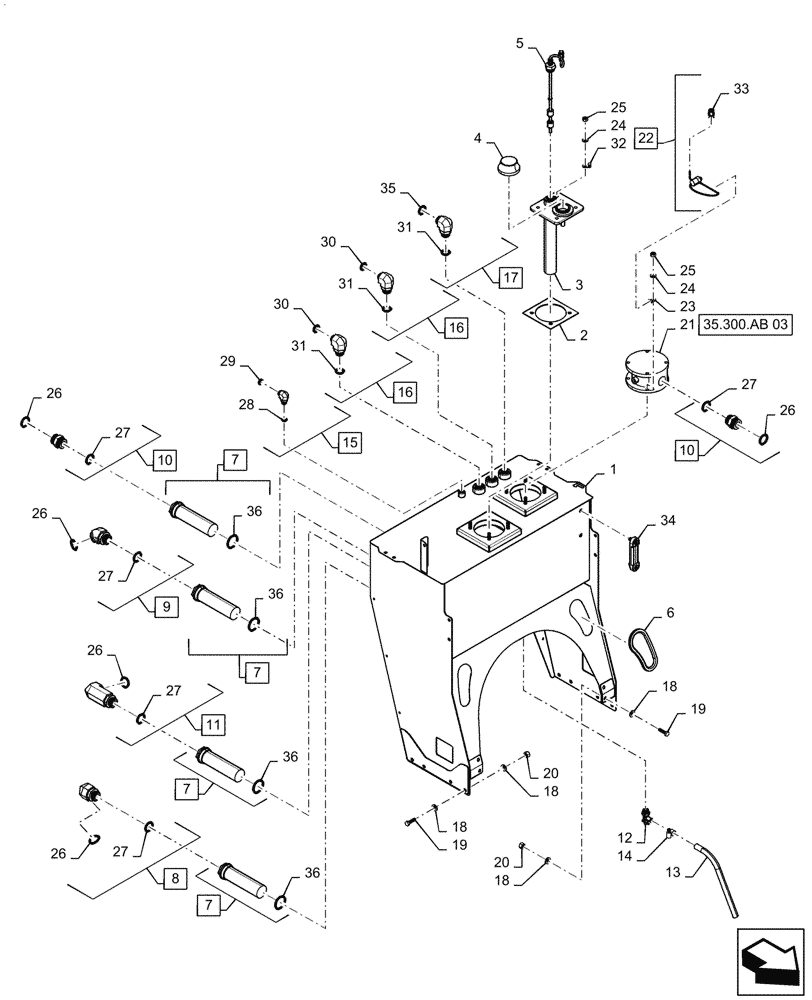

Запчасти Case IH PATRIOT 4440 (35.300.AQ[01.1]) - HYDRAULIC OIL RESERVOIR, ASN YGT044000 (35) - HYDRAULIC SYSTEMS

1

47976720

RESERVOIR, HYDRAULIC

Oil Tank

1шт.

2

87272095

GASKET,3.17mm Thk

Cover Plate

1шт.

3

87272099

PLATE

Temperature/Level

1шт.

4

BN304339

VALVE

Pressure Valve, Breather

1шт.

5

84596253

SENSOR

Multi-Level And Temperature Oil Sender

1шт.

6

87757013

SEAL

Trim

2шт.

7

BN303528

STRAINER ASSY.

32MB X 20 FB, 100 Mesh, Incl 36

4шт.

8

BN302577

ELBOW

1 - 11/16" - 12 ORFS x 1 - 5/8" - 12 ORB, Incl 26, 27

1шт.

9

48009573

ELBOW

45°, 1 - 11/16" - 12 ORFS x 1 - 5/8" - 12 ORB, Incl 26, 27

1шт.

10

BN302660

FITTING

1 - 11/16" - 12 ORFS x 1 - 5/8" - 12 ORB, Incl 26, 27

2шт.

11

BN302425

ELBOW

1 - 11/16" - 12 ORFS x 1 - 5/8" - 12 ORB, Long, Incl 26, 27

1шт.

12

87105048

DRAINCOCK/TAP SUPPLY

Valve, Hydraulic

1шт.

13

129096A1

HOSE

Reservoir Drain

1шт.

14

87487835

CLAMP,0.69" - 1.25"

Reservoir Drain

1шт.

15

BN302558

ELBOW

13/16" - 16 ORFS x 3/4" - 16 ORB, Incl 28, 29

1шт.

16

BN302570

ELBOW

1 - 3/16" - 12 ORFS x 1 - 5/16" - 12 ORB, Incl 30, 31

2шт.

17

BN302574

ELBOW

1 - 7/16" - 12 ORFS x 1 - 5/16" - 12 ORB, Incl 31, 35

1шт.

18

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

20шт.

19

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

10шт.

20

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

10шт.

21

87267807

HYDRAULIC OIL FILTER

Oil, In Tank

1шт.

22

87267808

PRESSURE SWITCH

Oil Tank, Incl 33

1шт.

23

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

2шт.

24

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

25

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

26

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

5шт.

27

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

5шт.

28

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

29

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

31

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

32

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

33

245483C1

ELEC CONNECTOR,Male, 2 Pin

WeatherPack

1шт.

34

BN322594

GAUGE

Sight With Temperature

1шт.

35

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

36

9846875

O-RING,0.118" Thk x 2.337" ID, -932, Cl 6, 90 Duro

4шт.
