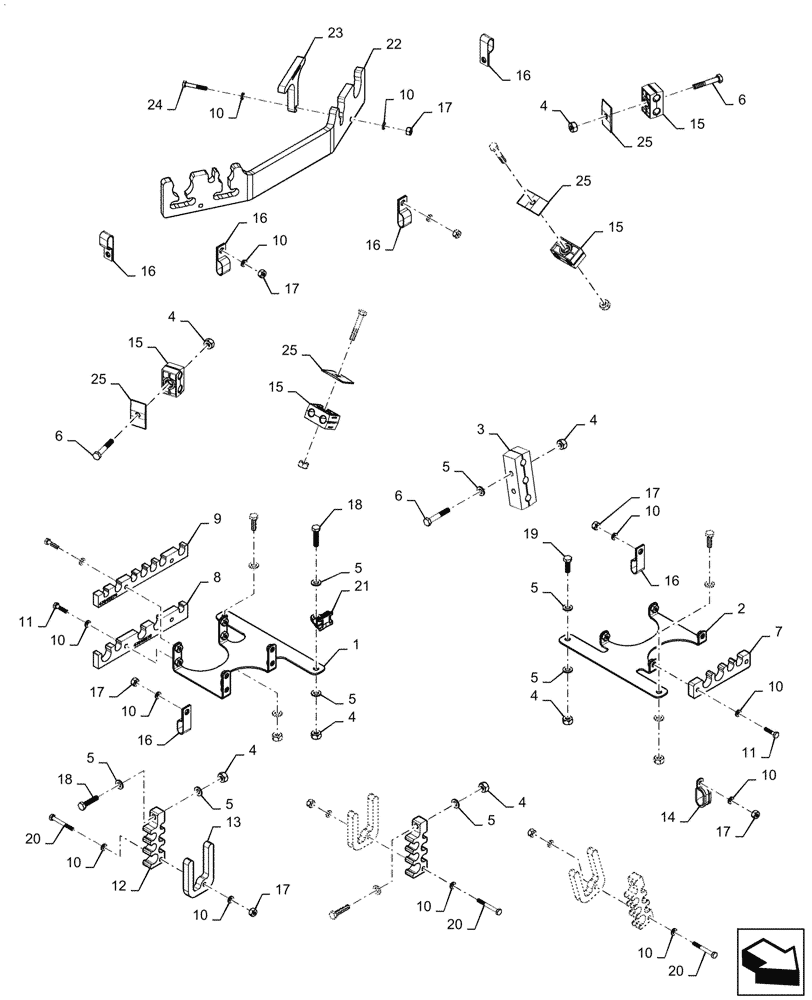

Запчасти Case IH PATRIOT 4440 (35.300.AD[06]) - HYDRAULIC LINE CLAMP, ASN YGT044000 (35) - HYDRAULIC SYSTEMS

1

47977428

MOUNT

Hose Holder, Deep, 2 Weldnuts

1шт.

2

47977429

MOUNT

Hose Holder, Shallow, 1 Weldnut

1шт.

3

84176018

CLAMP

3 Hole Block

1шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

12шт.

5

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

14шт.

6

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

6шт.

7

47942969

BLOCK

4 Hose

2шт.

8

47942972

BLOCK

5 Hose

2шт.

9

47942974

BLOCK

7 Hose

2шт.

10

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

27шт.

11

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

12шт.

12

47963257

BLOCK

Hose Retainer

3шт.

13

47963258

BLOCK

Hose Retainer

3шт.

14

10115801

CLAMP,16mm, Coat, P Type

1шт.

15

47977504

CLAMP

2 Hole

4шт.

16

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

6шт.

17

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

10шт.

18

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

19

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

20

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

3шт.

21

84360210

BASE

Tie

1шт.

22

47971009

RETAINER

4 Hose, 3 Sided

1шт.

23

47971007

RETAINER

Hose, Tee

2шт.

24

86980364

BOLT,Hex, M6 - 1 x 40mm, Cl 8.8, DOR

2шт.

25

BN311653

PLATE

Dual

4шт.
