Запчасти Case IH PATRIOT 4440 (35.300.AB[03]) - HYDRAULIC IN-TANK FILTER (35) - HYDRAULIC SYSTEMS

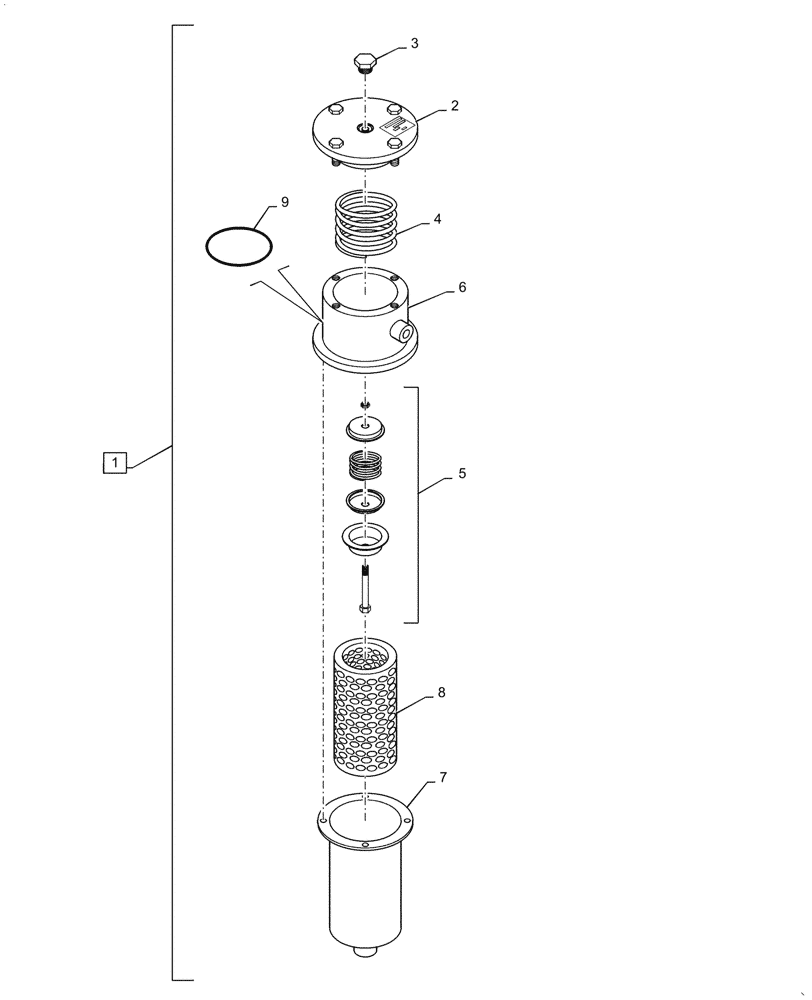

Схема запчастей Case IH PATRIOT 4440 - (35.300.AB[03]) - HYDRAULIC IN-TANK FILTER (35) - HYDRAULIC SYSTEMS
7
6
5
9
4
3
2
8
1

Артикул

Название

Примечание

Количество

1

87267807

HYDRAULIC OIL FILTER

Assembly, Oil, In Tank, Incl 2 - 9

1шт.

2

87272027

CAP

With Fill Port, Oil Filter

1шт.

3

214389

PLUG,3/4" - 16 ORB

1шт.

4

87272028

SPRING

Compression, Oil Filter

1шт.

5

87272029

FILTER ASSY

Bypass Assembly, Oil

1шт.

6

87272030

FILTER HEAD

Hydraulic Oil

1шт.

7

87272031

FILTER BOWL

Oil Housing

1шт.

8

87272033

ELEMENT

Hydraulic Oil

1шт.

9

87272032

SEAL KIT

Oil Filter

1шт.

Выбрано товаров: 9
