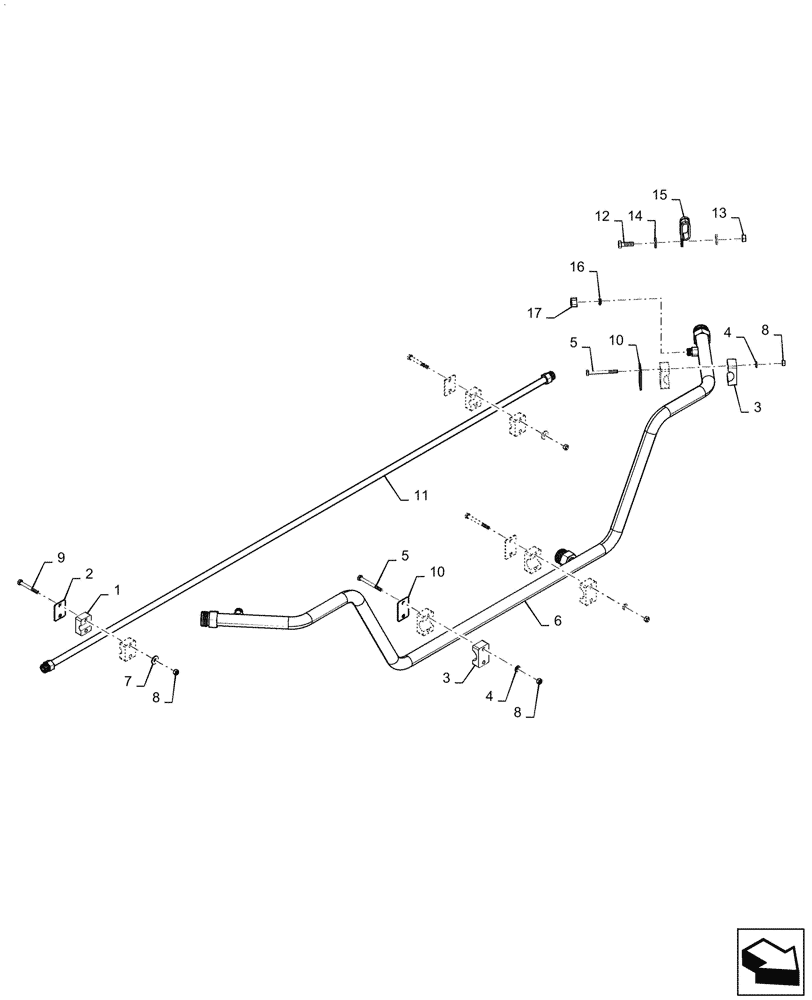

Запчасти Case IH PATRIOT 4440 (35.220.AD[04]) - FRONT, CROSS FRAME, HYDRAULIC STEEL LINES, ASN YGT044000 (35) - HYDRAULIC SYSTEMS

1

BN29783

CLAMP

Single, 1/2" Tube

4шт.

2

BN29785

PLATE

Cover, Single, 1/2" Tube

2шт.

3

BN307080

CLAMP

Pair, 1" Tube

8шт.

4

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

8шт.

5

86980367

BOLT,Hex, M6 x 60mm, Cl 8.8

8шт.

6

47942989

HYD TUBE

Hydraulic Return

1шт.

7

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

8

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

12шт.

9

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

4шт.

10

BN307081

PLATE

1" Tube Clamp

4шт.

11

BN324491

TUBE

Hydraulic Line

1шт.

12

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

14

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

15

47761010

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

16

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

17

BN305425

CAP

-4 FFOR

2шт.

Used with Standard Suspension, NA for Active Suspension

1шт.
