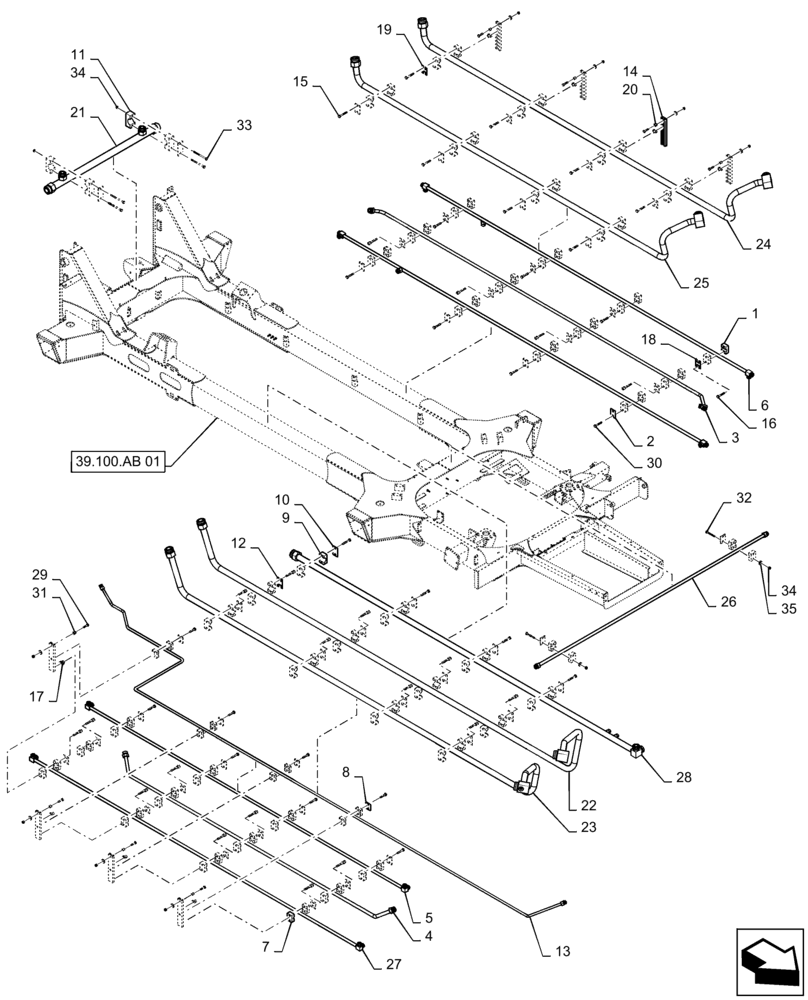

Запчасти Case IH PATRIOT 4440 (35.220.AD[01]) - HYDRAULIC STEEL LINES, BSN YGT044001 (35) - HYDRAULIC SYSTEMS

1

BN29783

CLAMP

Single, 1/2" Tube

26шт.

2

BN29785

PLATE

Cover, 1/2" Tube

10шт.

3

84279309

HYD TUBE

Steering Pressure

1шт.

4

84279310

HYD TUBE

Steering Return

1шт.

5

84279311

HYD TUBE

Drive Servo Control

1шт.

6

84279312

HYD TUBE

Axle Adjustment

2шт.

7

BN307078

CLAMP

Pair, 3/8" Tube

4шт.

8

BN307079

PLATE

Top, 3/8" Tube Clamp

4шт.

9

BN307080

CLAMP

Pair 1" Tube

20шт.

10

BN307081

PLATE

Top, 1" Tube Clamp

8шт.

11

BN307082

CLAMP

Pair 1.25" Tube

2шт.

12

BN309483

PLATE

Cover, Single, Size 5

2шт.

13

84279313

HYD TUBE

Brake Return

1шт.

14

BN313247

RAIL

Standard Duty C-Rail

8шт.

15

87342609

BOLT

1/4" x 1.75", GR 5, DOR

16шт.

16

BN313261

BOLT

Stacking, 1/4" x 1.12"

56шт.

17

BN313262

NUT

C-Rail, 1/4" x 20

40шт.

18

BN313264

PLATE

Safety, 1/2" Tube

16шт.

19

BN313265

PLATE

Safety, 1" Tube

12шт.

20

BN316101

SPACER

C-Rail, Hydraulic Tube

8шт.

21

47562471

TUBE

Manifold Return

1шт.

22

84279314

HYD TUBE

Drive Line Pres.B

1шт.

23

84279315

HYD TUBE

Drive Line Press. A

1шт.

23

BN53991

PLUG

Used On Ref 23 - 24, When Not Equiped With Active Suspension

2шт.

24

47637479

TUBE

Drive Line Press. A

1шт.

25

47637480

TUBE

Drive Line Press. B

1шт.

26

BN324491

TUBE

Steering Crossover

1шт.

27

84279318

HYD TUBE

Park Brake

1шт.

28

84323037

HYD TUBE

Case Drain

1шт.

29

87342607

BOLT

.250 x 1.25, GR5, DOR

8шт.

30

87342608

BOLT

.250 x 1.50, GR5, DOR

16шт.

31

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

8шт.

32

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 x 50mm, CL8.8, DOR

4шт.

33

86980369

BOLT,Hex, M6 x 80, Cl 8.8

4шт.

34

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

16шт.

35

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

12шт.
