Запчасти Case IH PATRIOT 4440 (35.106.AO[03]) - MANIFOLD, PRESSURE COMPENSATING (35) - HYDRAULIC SYSTEMS

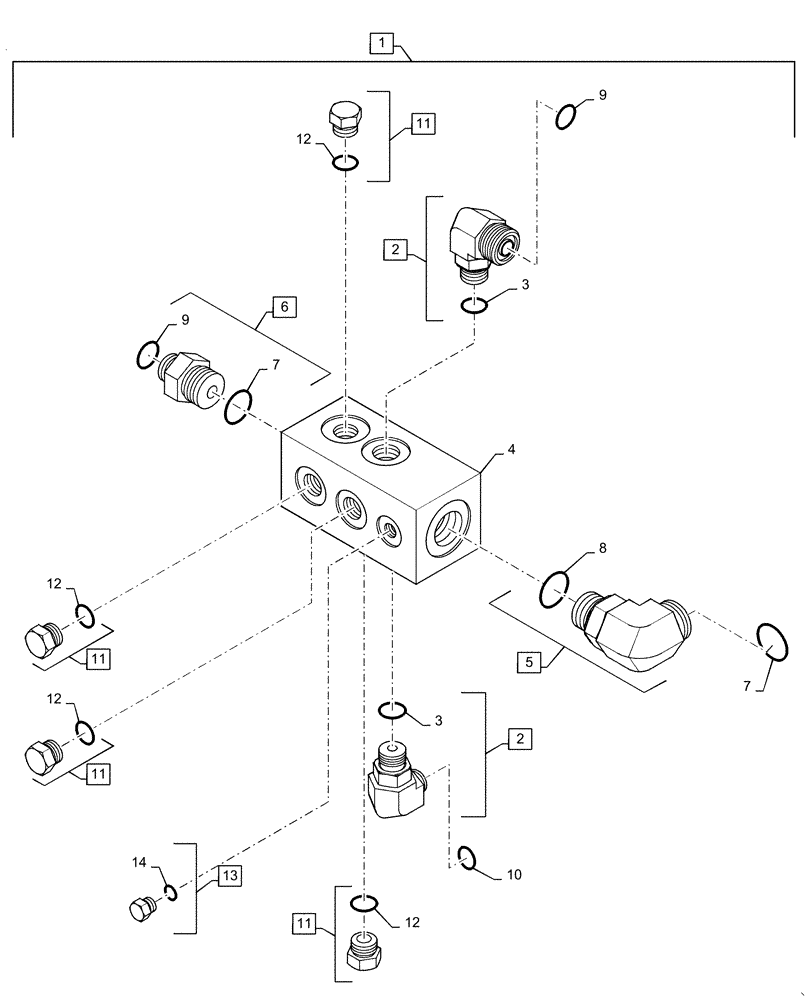

Схема запчастей Case IH PATRIOT 4440 - (35.106.AO[03]) - MANIFOLD, PRESSURE COMPENSATING (35) - HYDRAULIC SYSTEMS
8
3
2
11
12
6
7
11
13
9
12
3
2
10
14
7
12
5
12
4
11
9
1
11

Артикул

Название

Примечание

Количество

1

BN323902

MANIFOLD

Pressure Compensating, Complete, Incl 2 - 14

1шт.

2

BN302554

FITTING

11/16" - 16 ORFS x 3/4" - 16 ORB x 90 Deg, Incl 3

2шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

4

BN326042

BODY

Aluminum

2шт.

5

BN302568

ELBOW

1 - 3/16" - 12 ORFS x 1 - 1/16" - 12 ORB, Incl 8

1шт.

6

BN302652

FITTING

13/16" - 16 OFRS x 1 - 1/16" - 12 ORB, Incl 7, 9

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

BN446025

PLUG

-6, Port "G", Incl 12

4шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

13

BN446048

PLUG

-8, Ports P2, P4 - P6, Incl 14

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 14
