(35.106.AO[02]) - HYDRAULIC BOOM SUPPLY LINES, ASN YGT044000

Запчасти Case IH PATRIOT 4440 (35.106.AO[02]) - HYDRAULIC BOOM SUPPLY LINES, ASN YGT044000 (35) - HYDRAULIC SYSTEMS

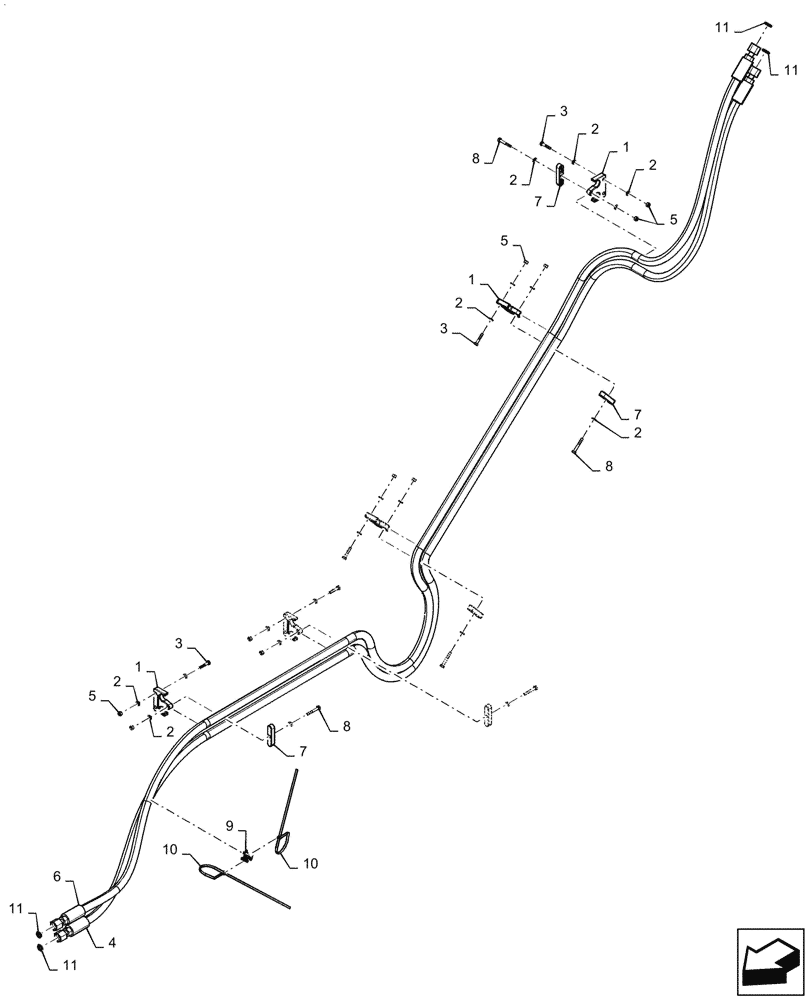

Схема запчастей Case IH PATRIOT 4440 - (35.106.AO[02]) - HYDRAULIC BOOM SUPPLY LINES, ASN YGT044000 (35) - HYDRAULIC SYSTEMS
1
2
10
11
11
1
10
8
6
3
1
2
7
5
5
2
3
9
2
5
8
11
3
7
2
2
4
2
11
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47972095

RETAINER

2 Hose, Plastic

5шт.

2

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

30шт.

3

86980362

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

10шт.

4

48043427

HYDRAULIC HOSE

13/16 - 16 ORFS Swivel Short Straight x 13/16 - 16 ORFS Swivel Short Straight x 1/2" ID x 148" Long, 3 Bank Boom Control Valve to 8 Bank Boom Function Valve

1шт.

5

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

15шт.

6

48043426

HYDRAULIC HOSE

13/16 - 16 ORFS Swivel Short Straight x 13/16 - 16 ORFS Swivel Short Straight x 1/2" ID x 151 1/2" Long, 3 Bank Boom Control Valve to 8 Bank Boom Function Valve

1шт.

7

47972096

RETAINER

Bar

5шт.

8

86980364

BOLT,Hex, M6 - 1 x 40mm, Cl 8.8, DOR

5шт.

9

84318895

SPACER,17.97mm H

1шт.

10

BN570007

STRAP

14" Zip Tie

2шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.
