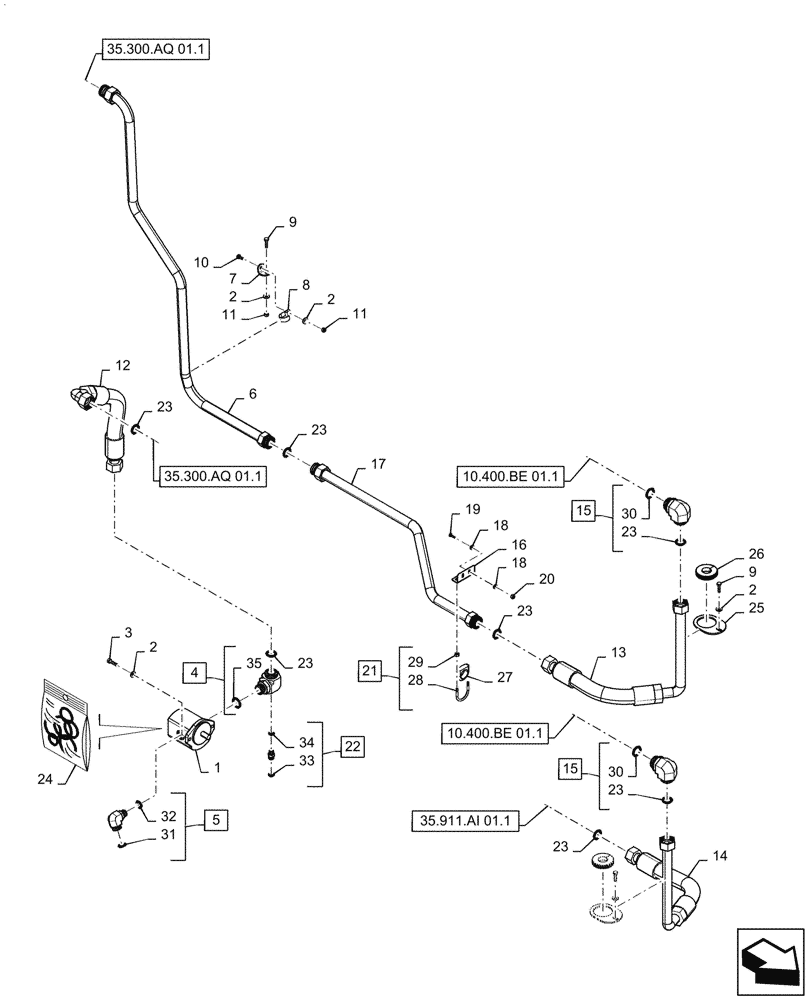

Запчасти Case IH PATRIOT 4440 (35.104.AA[01.1]) - DEDICATED HYDRAULIC PUMP, AND COOLER LINES, ASN YGT044000 (35) - HYDRAULIC SYSTEMS

1

87266244

PUMP,22 CC

Gear, 1.39 Cubic Inch, LH Rotation

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

3

87635863

BOLT

M10 x 25mm, DOR

2шт.

4

BN313173

ADAPTER

Machined, 1 - 11/16" - 12 ORFS x 1 - 5/16" - 12 ORB x 9/16" - 18, Incl 23, 35

1шт.

5

BN53590

ELBOW

1 - 3/16" - 12 ORFS x 7/8" - 14 ORB, Incl 31, 32

1шт.

6

47974352

HYD TUBE

Hydraulic Return To Tank From Cooler

1шт.

7

84272701

SUPPORT

Steel Line

1шт.

8

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

1шт.

9

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

12

87385792

HOSE

1 - 11/16" - 12 ORFS Straight Swivel x 1 - 11/16" - 12 ORFS Swivel Short Elbow x 1 - 1/4" ID x 23 1/2" Long, Gear Pump To Reservoir

1шт.

13

48030548

HYDRAULIC HOSE

1 - 11/16" - 12 ORFS Swivel Special Elbow x 1 - 11/16" - 12 ORFS Swivel Straight Short x 1 - 1/4" ID x 20 1/2" Long, Oil Cooler To Return Tube

1шт.

14

48030551

HYDRAULIC HOSE

1 - 11/16" - 12 ORFS Swivel Special Elbow x 1 - 11/16" - 12 ORFS Swivel Straight Short x 1 - 1/4" ID x 23 1/2" Long, Oil Cooler To 3 Bank Control Valve

1шт.

15

BN302577

ELBOW

1 - 11/16" - 12 ORFS x 1 - 5/8" - 12 ORB, Incl 23, 30

1шт.

16

47965542

SUPPORT

Angled Hose Support

1шт.

17

47974354

HYD TUBE

Hydraulic Return To Tank From Cooler

1шт.

18

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

19

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

20

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

21

47618436

CLAMP

1" Assembly, Incl 27 - 29

1шт.

22

BN302646

FITTING

Straight, 11/16" - 16 ORFS x 9/16" - 18 ORB x 11/16" - 16 ORFS, Incl 33, 34

1шт.

23

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

7шт.

24

84226692

SERVICE KIT

Seal Kit For Ref 1

1шт.

25

48010066

PLATE

Hose Seal

2шт.

26

48010086

GROMMET

Slit Rubber

2шт.

27

BN320370

INSERT

1" Clamp

1шт.

28

47618437

U-BOLT

1/4" -20

1шт.

29

BN320369

NUT

1/4" -20

2шт.

30

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

31

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

32

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

33

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

34

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
