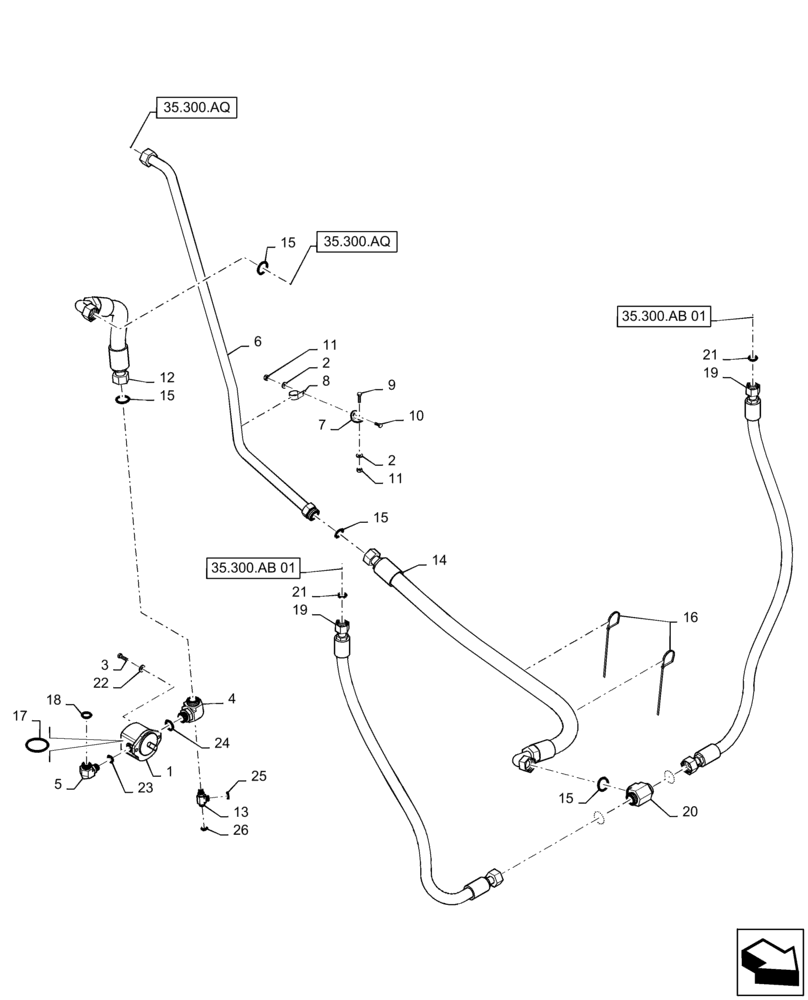

Запчасти Case IH PATRIOT 4440 (35.104.AA[01]) - DEDICATED HYDRAULIC PUMP AND COOLER LINES, BSN YGT044001 (35) - HYDRAULIC SYSTEMS

1

87266244

PUMP,22 CC

Gear, 1.39 Cubic Inch, LH Rotation

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

3

87635863

BOLT

M10 x 25mm, DOR

2шт.

4

BN313173

ADAPTER

Machined, 1 - 11/16" - 12 ORFS x 1 - 5/16" - 12 ORB x 9/16" - 18 ORP

1шт.

5

BN53590

ELBOW

1 - 3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

6

47438749

TUBE

Hydraulic Return To Tank

1шт.

7

84272701

SUPPORT

Steel Line

1шт.

8

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

1шт.

9

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

12

87385792

HOSE

1 - 11/16" - 12 ORFS Swivel x 1 - 11/16" - 12 ORFS Swivel Short Elbow x 1 - 1/4" ID x 23.5" Long, Gear Pump To Reservoir

1шт.

13

BN302583

FITTING

11/16" - 16 ORFS x 9/16" - 18 ORB x 11/16" - 16 ORFS

1шт.

14

84519503

HYDRAULIC HOSE

1 - 11/16" - 12 ORFS Swivel x 1 - 11/16" - 12 ORFS Swivel Short Elbow x 1 - 1/4" ID x 56" Long, Tee To Return Tube

1шт.

15

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

16

BN570007

STRAP

Black

2шт.

17

84226692

SERVICE KIT

Used On Ref 1

1шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

47444600

HYDRAULIC HOSE

1 - 11/16" - 12 ORFS Swivel, Short, x 1 - 11/16" - 12 ORFS Swivel Short x 1" ID x 59" Long, Tee To Oil Cooler

2шт.

20

84485117

UNION TEE

1 - 11/16, - 12 ORFS

1шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

22

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

23

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
