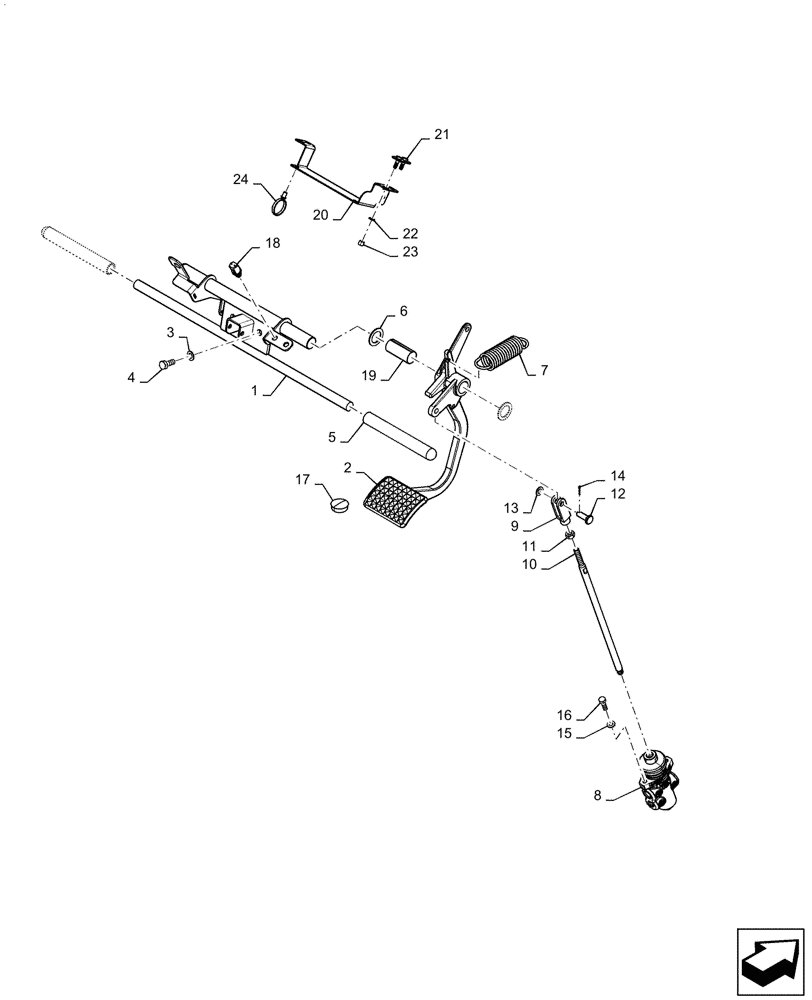

Запчасти Case IH PATRIOT 4440 (33.350.AL[02]) - BRAKE PEDAL AND CONTROL VALVE, BUILT OCT 1, 2015 AND AFTER (33) - BRAKES & CONTROLS

1

47770069

SUPPORT

Pedal

1шт.

2

47632824

PEDAL

Brake

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

321961A1

MOLDING

Rubber

2шт.

6

281093A1

WASHER,Flat, 26.5mm x 38.1mm x 2mm

2шт.

7

278210A1

SPRING,Extension, 38.1mm OD x 114.3mm L

Brake Pedal Return

1шт.

8

47754838

VALVE

Brake

1шт.

9

713-1110

CLEVIS

Regular Adjustable M10 x 40mm

1шт.

10

47765021

THREADED ROD

Brake

1шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

12

729-1030

CLEVIS PIN,M10 x 30

1шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

14

733-2512

COTTER PIN,M2.5 x 12

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

17

353-422

PLUG,Dome, 1.250" hole, Nylon

Floor Hole

1шт.

18

279265A2

SWITCH

Brake Light

1шт.

19

281893A1

BEARING

Pedal

1шт.

20

47600705

BRACKET

Dash Harness

1шт.

21

47600703

MOUNTING PLATE

Backing

2шт.

22

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

23

832-10406

NUT,M6 x 1, Cl 8

4шт.

24

87668737

CABLE TIE,203.2mm L, Nylon, Black

2шт.
