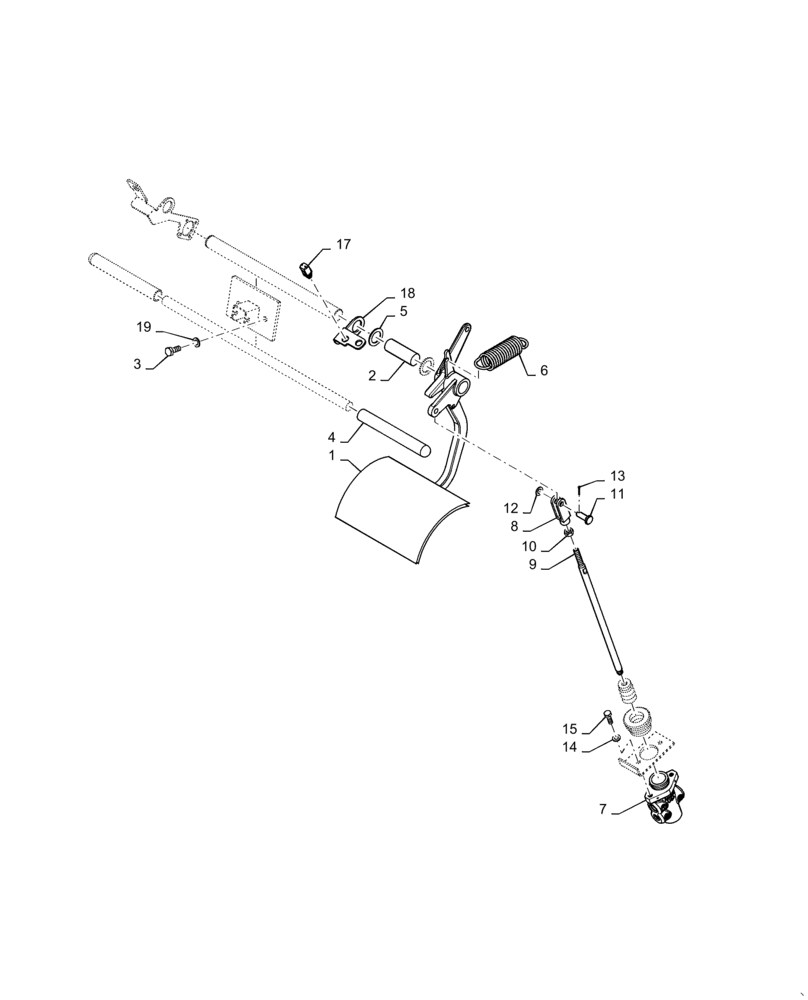

Запчасти Case IH PATRIOT 4440 (33.350.AL[01]) - BRAKE PEDAL AND CONTROL VALVE, BUILT BEFORE OCT 1 2015 (33) - BRAKES & CONTROLS

1

47632824

PEDAL

Brake

1шт.

2

370247A3

SUPPORT

Brake Pedal

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

4

321961A1

MOLDING

Rubber

2шт.

5

281093A1

WASHER,Flat, 26.5mm x 38.1mm x 2mm

Flat, 26.5" ID x 38.1" OD x 2.04" Thickness

2шт.

6

278210A1

SPRING,Extension, 38.1mm OD x 114.3mm L

Brake Pedal Return

1шт.

7

380930A1

VALVE

Brake

1шт.

8

713-1110

CLEVIS

Regular Adjustable M10 x 40mm

1шт.

9

380955A1

ROD

Brake, Threaded

1шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

11

729-1030

CLEVIS PIN,M10 x 30

1шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

13

733-2512

COTTER PIN,M2.5 x 12

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

16

353-422

PLUG,Dome, 1.250" hole, Nylon

Insert In Clutch Cable Clearance Hole, Not Shown

1шт.

17

279265A2

SWITCH

Brake Light

1шт.

18

281893A1

BEARING

Pedal

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
