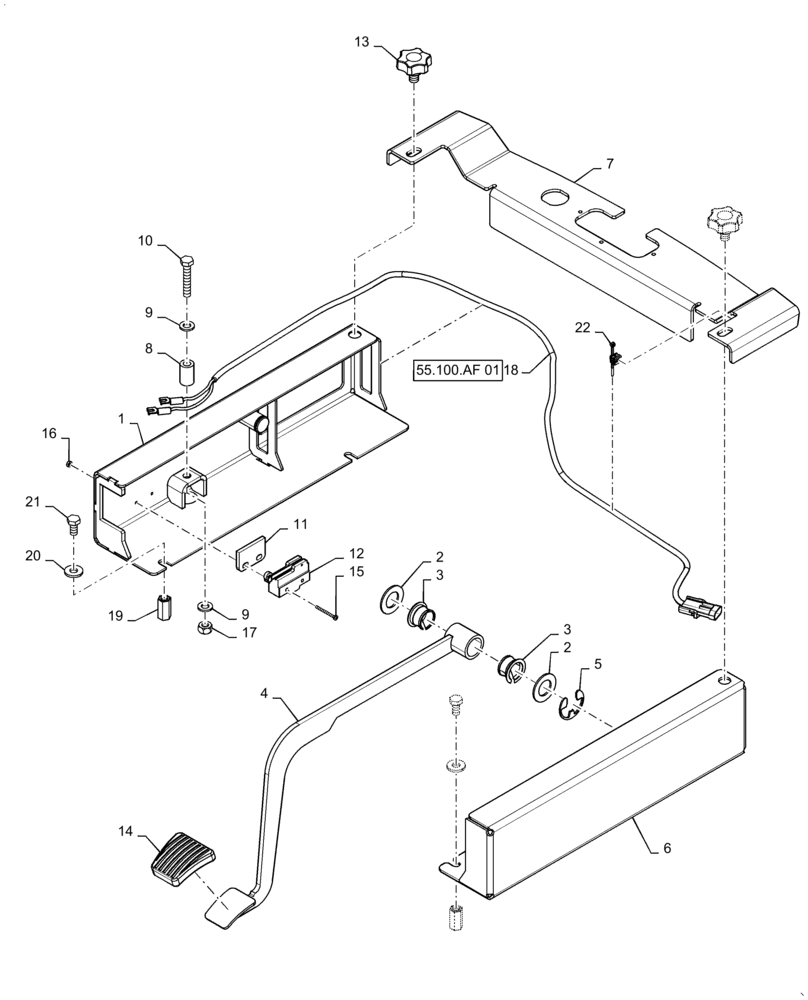

Запчасти Case IH PATRIOT 4440 (33.202.BN[01]) - TRACTION CONTROL, BSN YGT044001 (33) - BRAKES & CONTROLS

1

47368435

FRAME

Traction Control

1шт.

2

T102217

WASHER,20.1mm ID x 35mm OD x 2mm Thk

POM

2шт.

3

1990753C1

PLASTIC RING

Bushing Pedal

2шт.

4

47370081

PEDAL

PTD Traction Control

1шт.

5

800-3120

CIRCLIP,M20

1шт.

6

47552554

FRAME

PTD, Seat Cowling, LH

1шт.

7

47459782

SUPPORT

Wire Harness

1шт.

8

BN324420

SPRING

Die - 5/8" x 11/32" x 1.00"

1шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

10

86980384

BOLT,Hex, M8 x 45mm, Cl 8.8

M8 x 45mm, CL8.8 DOR

1шт.

11

87269472

SPACER

Switch

1шт.

12

141655A1

SWITCH

Micro Unloader

1шт.

13

394133A1

KNOB

Battery Cover

2шт.

14

323657A1

PAD

Foot Release Pedal

1шт.

15

840-1330

BOLT,Pan, M3 x 0.5 x 30mm, Gr 4.8

2шт.

16

824-1403

NUT,M3, Cl 5

2шт.

17

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

18

84362133

HARNESS

Traction Control

1шт.

19

84181073

NUT

Coupling

4шт.

20

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

21

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

22

47391607

FASTENER

Edge Clip, 3 - 6mm

1шт.
