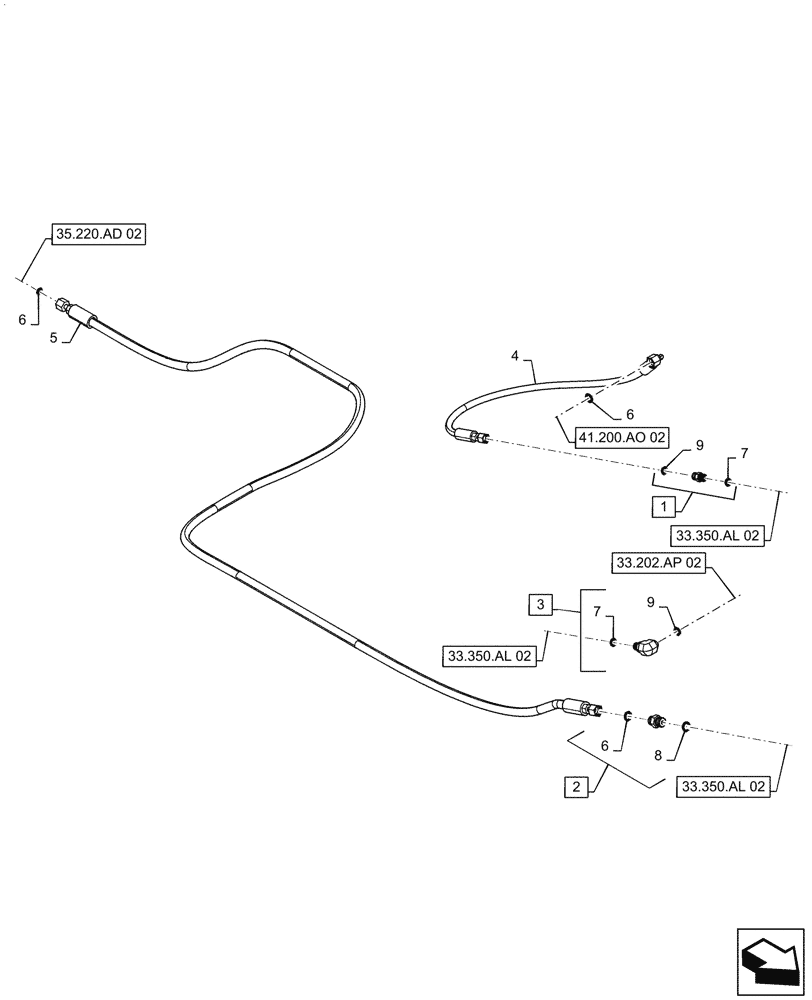

Запчасти Case IH PATRIOT 4440 (33.202.AP[04]) - BRAKE LINES, ASN YGT044000 (33) - BRAKES & CONTROLS

1

BN302641

FITTING

9/16"-18 ORFS x 9/16"-18 ORB, Incl 7, 9

1шт.

2

BN302647

FITTING

11/16"-16 ORFS x 3/4"-16 ORB, Incl 6, 8

1шт.

3

BN302549

ELBOW

9/16"-18 ORFS x 9/16"-18 ORB, Incl 7, 9

1шт.

4

47923830

HYDRAULIC HOSE

9/16" - 18 ORFS Swivel Short Straight x 11/16" - 16 ORFS Swivel Short Elbow x 1/4" ID x 20 1/2" Long, Brake Valve to Orbital Tee Fitting

1шт.

5

47923953

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16" - 16 ORFS Swivel Short Straight x 3/8" ID x 9' 5 3/4" Long, Brake Valve to Steel Line

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
