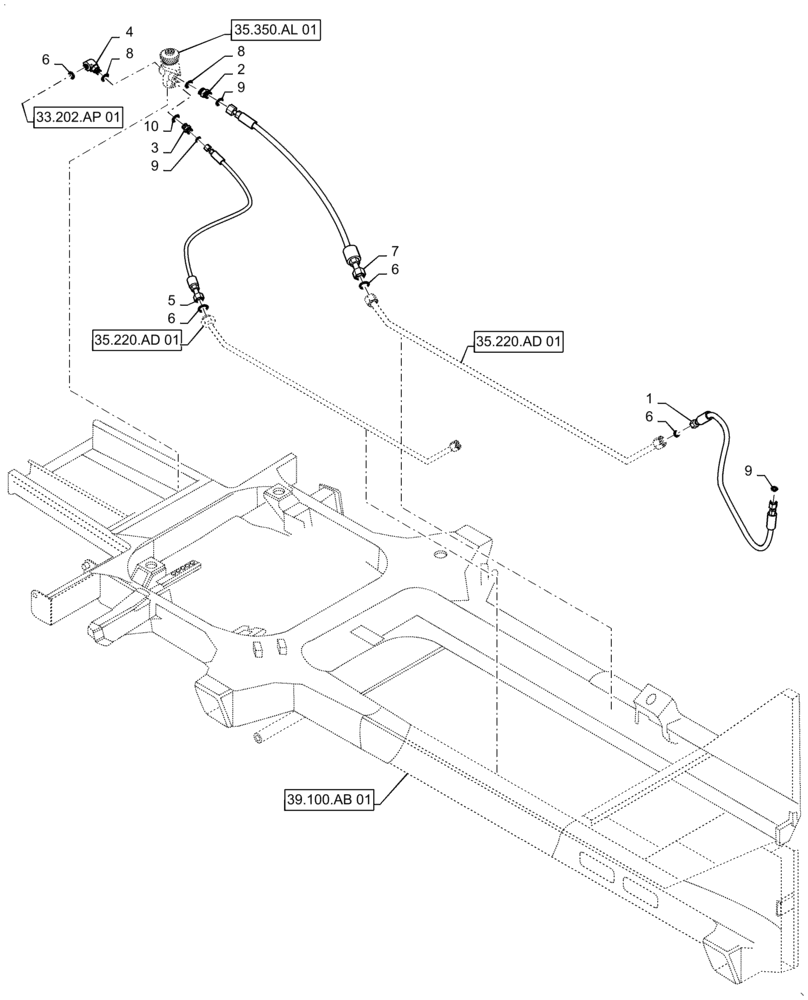

Запчасти Case IH PATRIOT 4440 (33.202.AP[03]) - BRAKE PEDAL HYDRAULIC LINES, BSN YGT044001 (33) - BRAKES & CONTROLS

1

87651667

HOSE

9/16" - 18 ORFS Swivel x 11/16" - 16 ORFS Swivel x 1/4" ID X 63" Long, Return Steel Line To Gear Pump

1шт.

2

BN302641

FITTING

9/16" - 18 ORFS x 9/16" - 18 ORB

1шт.

3

BN302647

FITTING

11/16" - 16 OFRS x 3/4" - 16 ORB

1шт.

4

BN302549

ELBOW

9/16" - 18 ORFS x 9/16" - 18 ORB

1шт.

5

BN307827

HOSE ASSY.

9/16" - 18 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 1/4" ID X 92" Long, Pressure Steel Line To Brake Valve

1шт.

6

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

.062 x .312", Class 6

4шт.

7

BN325315

HOSE ASSY.

9/16" - 18 ORFS Swivel x 11/16" - 16 ORFS Swivel x 1/4" ID X 72" Long, Brake Valve To Return Steel Line

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
