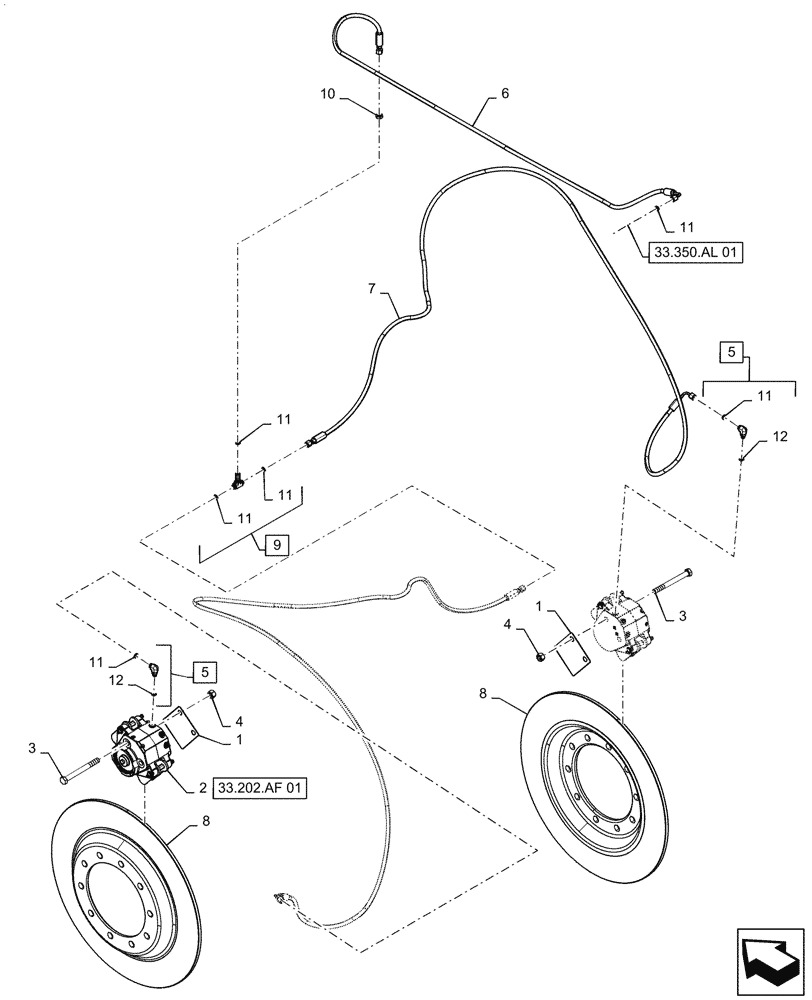

Запчасти Case IH PATRIOT 4440 (33.202.AP[01.1]) - DYNAMIC BRAKE ASSY., ASN YGT044000 (33) - BRAKES & CONTROLS

1

84340467

SPACER

Brake Caliper

2шт.

2

87493788

BRAKE CALIPER

Disc Brake

2шт.

See 33.202.AF 01 For Service

1шт.

3

87341864

BOLT,Hex, M16 x 160mm, Cl 10.9

4шт.

4

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

5

BN302547

90 ELBOW

9/16" - 18 ORFS x 7/16" - 20 ORB, Incl 11, 12

2шт.

6

47923556

HYDRAULIC HOSE

9/16" - 18 ORFS Swivel Medium Elbow x 9/16" - 18 ORFS Swivel Short Straight x 1/4" ID x 6' - 9" Long, Tee to Park Brake Valve

1шт.

7

47923946

HYDRAULIC HOSE

9/16" - 18 ORFS Swivel Medium Elbow x 9/16" - 18 ORFS Swivel Short Straight x 1/4" ID x 12' - 1" Long, Tee to Calipers

2шт.

8

BN301666

BRAKE DISC

27.875" Dia.

2шт.

9

47963432

UNION TEE

Bulkhead, 9/16" - 18 ORFS, Incl 11

1шт.

10

47963423

NUT

9/16" - 18

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

12

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.
