(35.106.AO[01]) - HYDRAULIC MANIFOLD AND LINES

Запчасти Case IH PATRIOT 3340 (35.106.AO[01]) - HYDRAULIC MANIFOLD AND LINES (35) - HYDRAULIC SYSTEMS

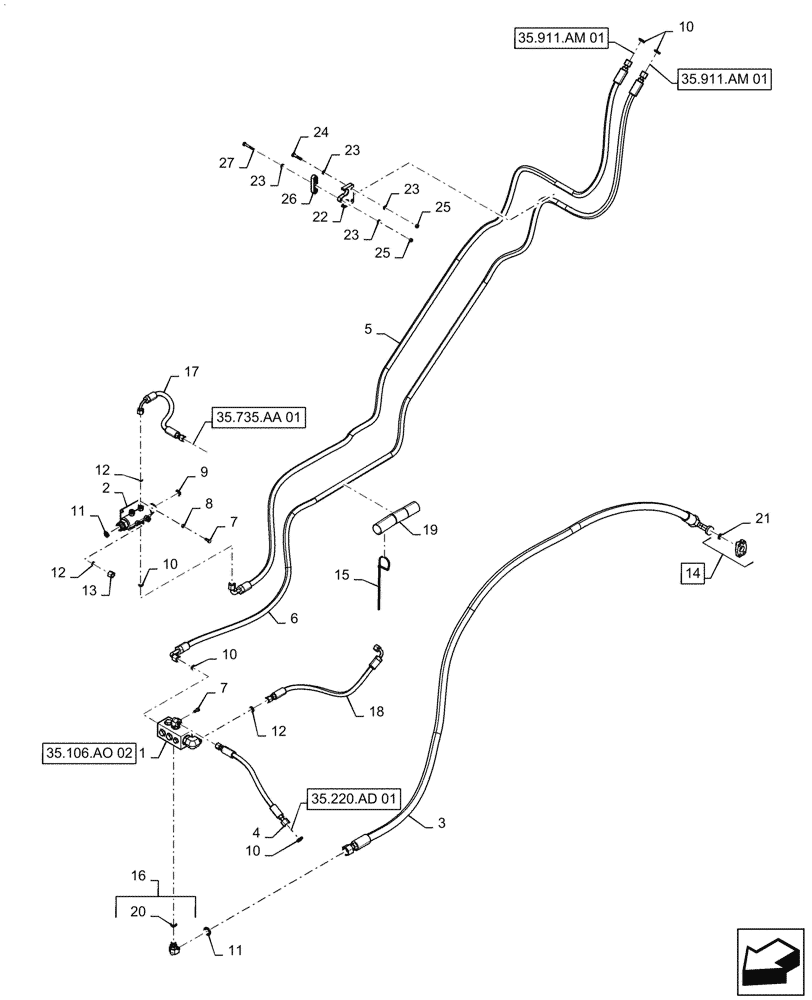

Схема запчастей Case IH PATRIOT 3340 - (35.106.AO[01]) - HYDRAULIC MANIFOLD AND LINES (35) - HYDRAULIC SYSTEMS
35.220.ad 01
10
10
16
17
5
4
21
6
11
1
20
23
23
12
7
7
3
15
23
13
8
18
22
19
9
27
14
25
2
12
10
11
24
25
26
23
12
10
35.106.ao 02
35.735.aa 01
35.911.am 01
35.911.am 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN323902

MANIFOLD

Pressure Compensating

1шт.

See 35.106.AO 02 For Service Parts

1шт.

2

BN307639

MANIFOLD

Hydraulic Return

1шт.

3

48029788

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel x Code 61 Flange Short Elbow x 3/4" ID x 104" Long, Pressure Compensated Pump to Pressure Manifold

1шт.

4

84584339

HOSE

11/16" -16 ORFS Swivel Short Straight x 13/16" -16 ORFS Swivel Short Straight x 3/8" ID x 24-1/2" Long, Pressure Manifold to Steel Lines

1шт.

5

BN309867

HOSE

13/16" -16 ORFS Swivel Meduim Elbow x 13/16" -16 ORFS Swivel x 1/2" ID x 142" Long, Pressure Manifold to Boom Control Valve

1шт.

6

86986371

HOSE

13/16" -16 ORFS Swivel Meduim Elbow x 13/16" -16 ORFS Swivel x 1/2" ID x 154" Long, Boom Control Valve to Return Manifold

1шт.

7

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

8

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

13

BN305426

CAP

-6 FFOR

1шт.

14

BN316600

KIT

Code 61, 3/4 Split Flange, Incl 21

1шт.

15

BN570007

STRAP

14-1/2"

8шт.

16

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg, Incl 20

1шт.

17

BN307824

HOSE ASSY.

11/16" -16 ORFS Swivel x 11/16" -16 ORFS Swivel Medium Elbow x 3/8" ID x 19.5" Long

1шт.

18

84415757

HOSE

11/16" -16 ORFS Swivel x 11/16" -16 ORFS Swivel Medium Elbow x 3/8" ID x 26" Long, Pressure Manifold to Pressure Limiter Valve

1шт.

19

342915A1

HOSE PROTECTION

Bulk, Cut To Length Required

1шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

Included With 14

1шт.

22

47972095

RETAINER

Hose, Plastic

3шт.

23

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

18шт.

24

86980362

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

6шт.

25

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

9шт.

26

47972096

RETAINER

Hose, Plastic

3шт.

27

86980364

BOLT,Hex, M6 - 1 x 40mm, Cl 8.8, DOR

3шт.
