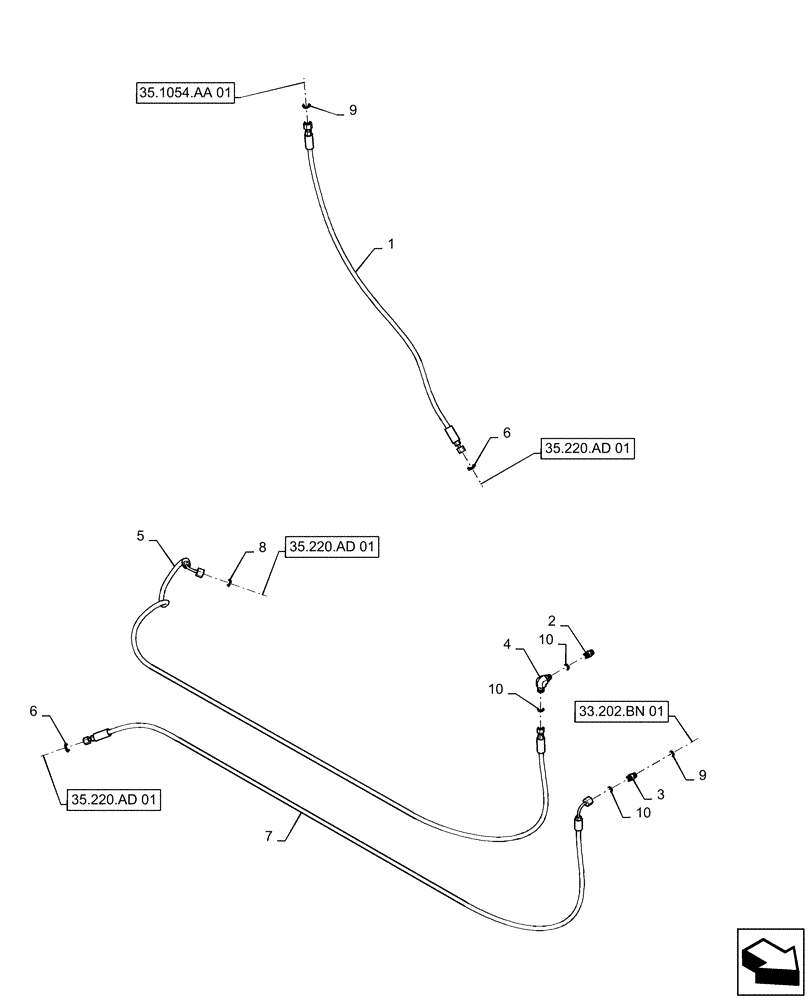

Запчасти Case IH PATRIOT 3340 (33.202.BH[01]) - BRAKE LINES (33) - BRAKES & CONTROLS

1

87651667

HOSE

9/16 -18 ORFS Swivel x 11/16 -16 ORFS Swivel x 1/4" ID X 63" Long, Steel Line "H" To Gear Pump

1шт.

2

BN302641

FITTING

9/16-18 ORFS x 9/16-18 ORB

1шт.

3

BN302647

FITTING

11/16" -16 OFRS x 3/4" -16 ORB

1шт.

4

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB

3шт.

5

84585565

HOSE

9/16 -18 ORFS Swivel Short x 11/16 -16 ORFS Swivel Medium Elbow x 1/4" ID X 119" Long, Steel Line To Brake Valve

1шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

7

BN307827

HOSE ASSY.

9/16 -18 ORFS Swivel x 11/16 -16 ORFS Swivel Medium Elbow x 1/4" ID X 92" Long, Steel Line To Brake Valve

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
