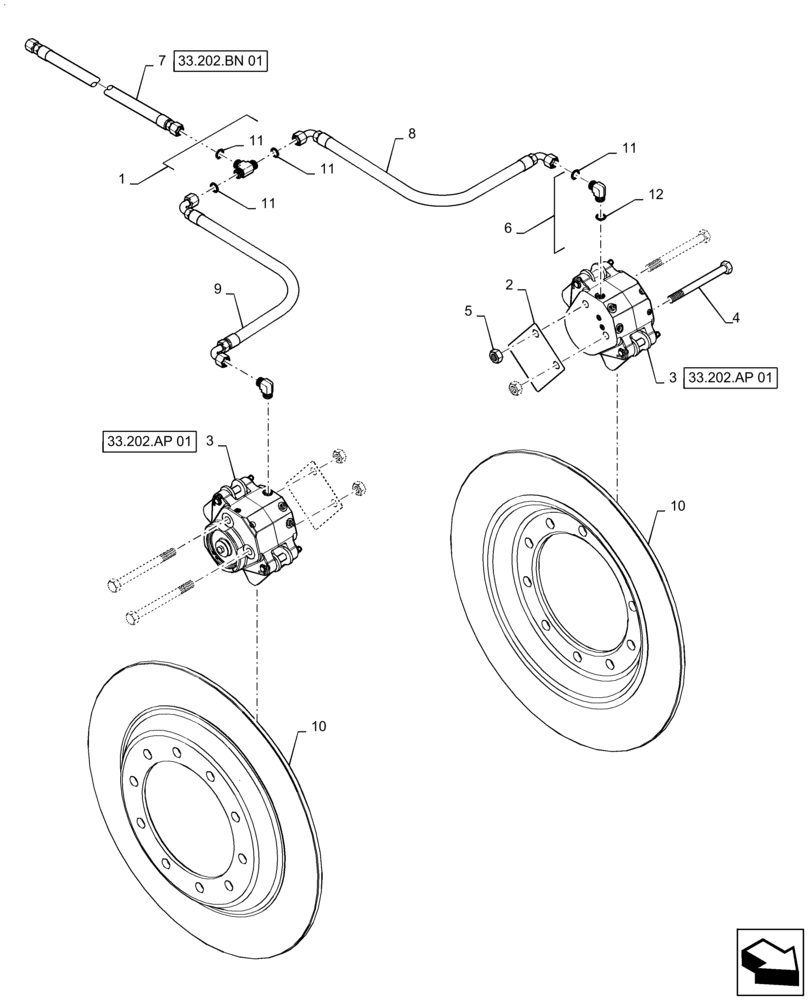

Запчасти Case IH PATRIOT 3340 (33.202.AP[01]) - DYNAMIC BRAKES (33) - BRAKES & CONTROLS

1

BN302511

FITTING

Tee, 9/16-18 ORFS, Incl 11

1шт.

2

84340467

SPACER

Brake Caliper

2шт.

3

87493788

BRAKE CALIPER

Disc Brake

2шт.

4

87341864

BOLT,Hex, M16 x 160mm, Cl 10.9

M16 x 160 CL10.9 DOR

4шт.

5

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

6

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, Incl 11 - 12

2шт.

7

86986060

HOSE

Brake, 9/16-18 Female Swivel x 9/16-18 Female Swivel Elbow x 1/4" ID x 97" Long, Brake Valve To Tee

1шт.

8

BN307829

HOSE ASSY.

Brake, Left, 9/16-18 Female Swivel x 9/16-18 Female Swivel Straight x 1/4" ID x 154-1/2" Long, Tee To Caliper Fitting

1шт.

9

BN324552

HOSE ASSY.

Brake, Right, 9/16-18 Female Swivel x 9/16-18 Female Swivel Straight x 1/4" ID x 140" Long, Tee To Caliper Fitting

1шт.

10

BN301666

BRAKE DISC

27.875" Dia.

2шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

12

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.
