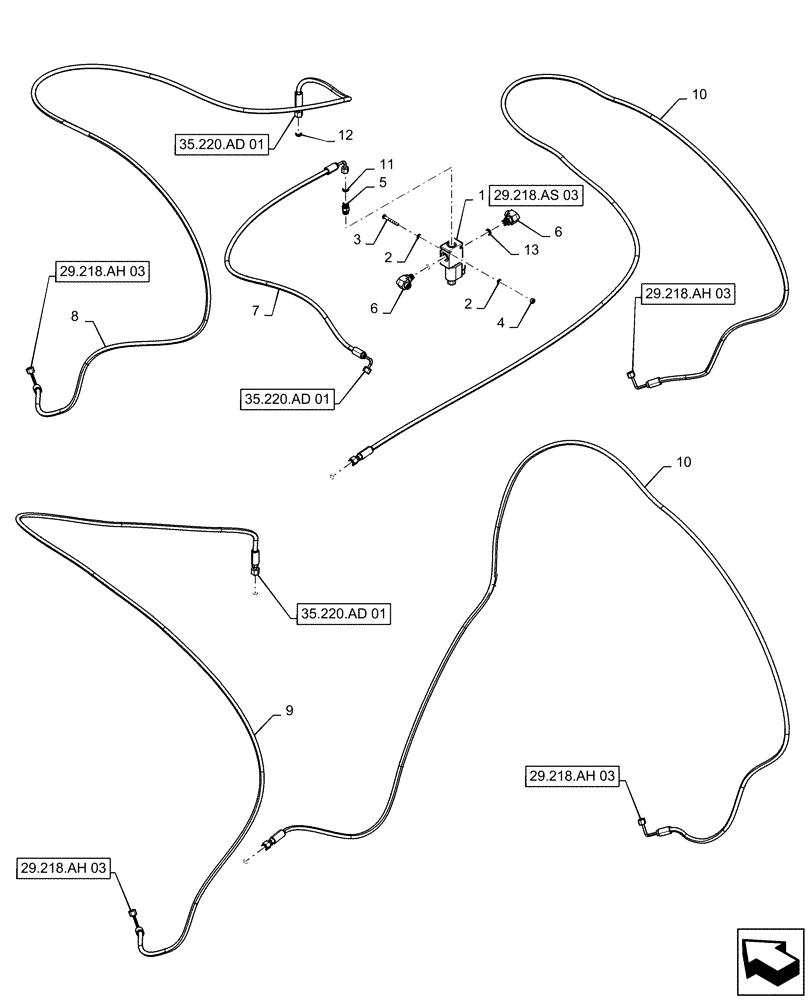

Запчасти Case IH PATRIOT 3340 (29.218.AS[02]) - MOTOR CONTROL LINES (29) - HYDROSTATIC DRIVE

1

87272002

HYDRAULIC VALVE

Motor Control

1шт.

See 29.218.AS 03 For Service Parts Breakdown

1шт.

2

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

3

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 1 X 50, 8.8, DOR

2шт.

4

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

5

BN302641

FITTING

9/16-18 ORFS x 9/16-18 ORB

1шт.

6

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

7

84586220

HOSE

9/16 -18 ORFS Swivel Medium Elbow x 9/16 -18 ORFS Swivel Medium Elbow x 1/4" ID x 49" Long, Steel Line To Motor Control

1шт.

8

BN325849

HOSE ASSY.

11/16 -16 ORFS Swivel x 9/16 -18 ORFS Swivel Long Elbow x 1/4" ID x 149" Long, Steel Line To Wheel Motor

1шт.

9

86986088

HOSE

11/16 -16 ORFS Swivel x 9/16 -18 ORFS Swivel Long Elbow x 1/4" ID x 141" Long, Steel Line To Wheel Motor

1шт.

10

BN325850

HOSE

11/16 -16 ORFS Swivel x 9/16 -18 ORFS Swivel Long Elbow x 1/4" ID x 169" Long, Steel Line To Wheel Motors

2шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
