Запчасти Case IH PATRIOT 3340 (29.218.AH[05.1]) - REAR PLANETARY HUB, 28:1 RATIO, ASN YGT044000 (29) - HYDROSTATIC DRIVE

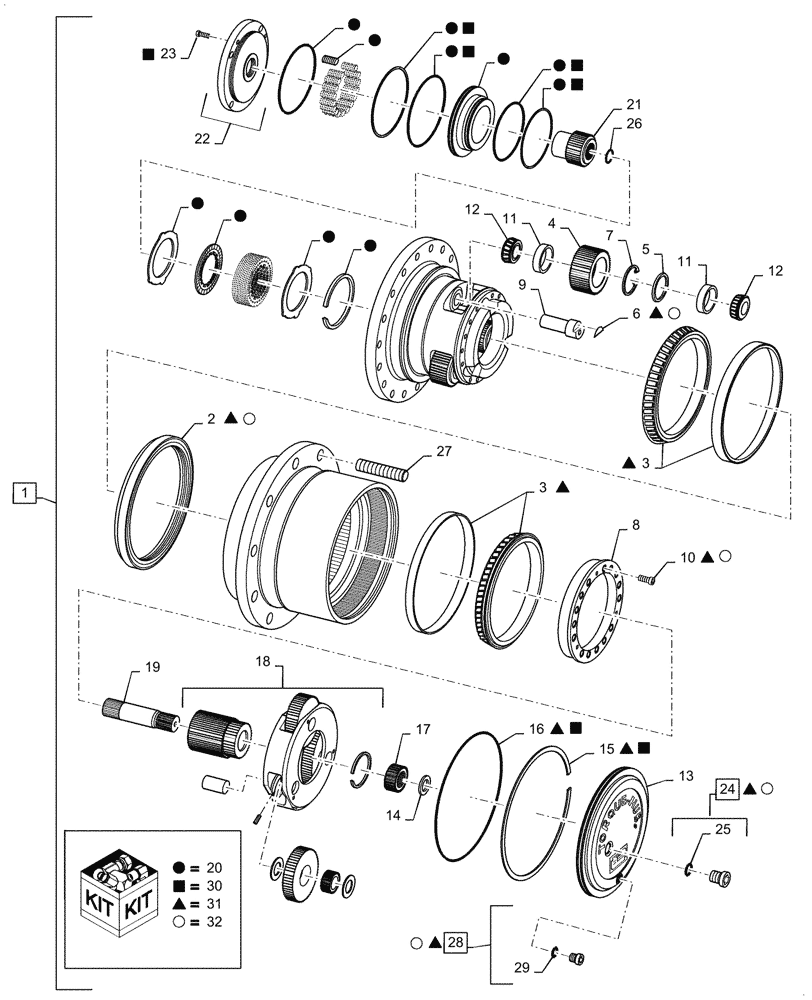

Схема запчастей Case IH PATRIOT 3340 - (29.218.AH[05.1]) - REAR PLANETARY HUB, 28:1 RATIO, ASN YGT044000 (29) - HYDROSTATIC DRIVE
22
30
20
15
31
20
11
32
3
27
7
20
13
30
10
6
29
32
31
31
32
31
30
5
20
23
24
16
12
20
30
25
31
20
20
2
30
17
31
30
28
30
3
19
30
20
31
20
4
14
1
11
9
20
31
32
31
18
31
32
20
20
31
21
12
32
8
20
30
32
26

Артикул

Название

Примечание

Количество

1

47982042

HUB

Planetary 28:1 W/ Lip Seal Lobed Brake, Rear, Complete

1шт.

2

87686094

SEAL,234.26mm ID x 269.11mm OD x 23.98mm Thk

1шт.

3

87271162

TAPERED BEARING

Inner / Outer

2шт.

4

87270201

GEAR, PLANETARY

3шт.

5

87476760

THRUST WASHER

Planetary

3шт.

6

87270213

SHIM

Shaft

2шт.

7

87476761

SNAP RING

Planetary

3шт.

8

87270204

BEARING CARRIER

Outer

1шт.

9

87570209

SHAFT

Planetary

3шт.

10

87270223

BOLT

Bearing Carrier

15шт.

11

87476757

BEARING CUP

Planetary

6шт.

12

87476756

BEARING CONE

Planetary

6шт.

13

87270206

COVER

Plate

1шт.

14

87270208

THRUST WASHER

Sun Gear

1шт.

15

87270218

RING

Internal Retaining

1шт.

16

87476759

RUBBER RING,0.139" Thk x 9.734" ID, -273

1шт.

17

87270194

GEAR

Sun

1шт.

18

48049792

CARRIER

Planetary

1шт.

19

87270191

SHAFT

Sun Gear

1шт.

20

84601005

BRAKE PACKAGE

Kit

1шт.

21

87270192

COUPLING

Brake

1шт.

22

84543760

ADAPTER

Inner

1шт.

23

87270224

BOLT

Inside Adaptor

4шт.

24

87270228

PLUG

3/4", Magnetic, Incl 25

1шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

87270219

RING

Retaining, Internal, Coupling

1шт.

27

87270233

STUD

Housing

10шт.

28

87270229

PLUG

9/16", Incl 29

1шт.

29

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

84600983

SEAL KIT

Brake

1шт.

31

48031413

SERVICE KIT

Bearing

1шт.

32

48031414

SERVICE KIT

Main Seal

1шт.

Выбрано товаров: 32
