Запчасти Case IH PATRIOT 3340 (29.200.AN[01]) - TRACTION CONTROL PEDAL (29) - HYDROSTATIC DRIVE

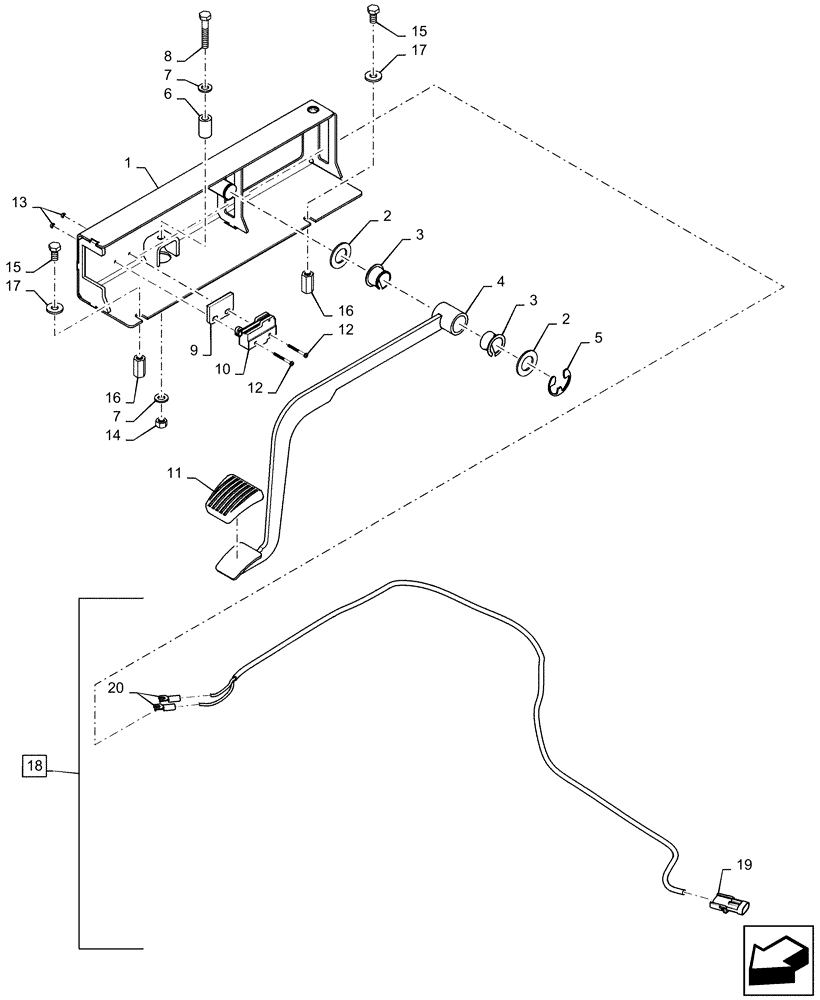

Схема запчастей Case IH PATRIOT 3340 - (29.200.AN[01]) - TRACTION CONTROL PEDAL (29) - HYDROSTATIC DRIVE
7
13
3
12
9
12
16
2
14
10
1
11
19
3
6
20
4
16
8
7
18
2
15
17
5
15
17

Артикул

Название

Примечание

Количество

1

47743254

FRAME

Traction Control

1шт.

2

T102217

WASHER,20.1mm ID x 35mm OD x 2mm Thk

Poly

2шт.

3

1990753C1

PLASTIC RING

Bushing Pedal

2шт.

4

47370081

PEDAL

Traction Control

1шт.

5

800-3120

CIRCLIP,M20

1шт.

6

BN324420

SPRING

Die - 5/8" x 11/32" x 1.00"

1шт.

7

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

8

86980384

BOLT,Hex, M8 x 45mm, Cl 8.8

M8 x 45mm, CL8.8 DOR

1шт.

9

87269472

SPACER

Switch

1шт.

10

141655A1

SWITCH

Micro Unloader

1шт.

11

323657A1

PAD

Foot Release Pedal

1шт.

12

840-1330

BOLT,Pan, M3 x 0.5 x 30mm, Gr 4.8

2шт.

13

824-1403

NUT,M3, Cl 5

2шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

15

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

16

84181073

NUT

Coupling

4шт.

17

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

18

84362133

HARNESS

Traction Control, Incl 19 - 20

1шт.

19

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Traction Control, C058M

1шт.

19

84277536

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

Traction Control, C058M

2шт.

19

87680701

SEAL

Green, Traction Control, C058M

2шт.

20

84367698

SPADE TERMINAL,Tin, 2.50 - 6.00mm

Traction Control, C001 / C002

2шт.

Выбрано товаров: 22
