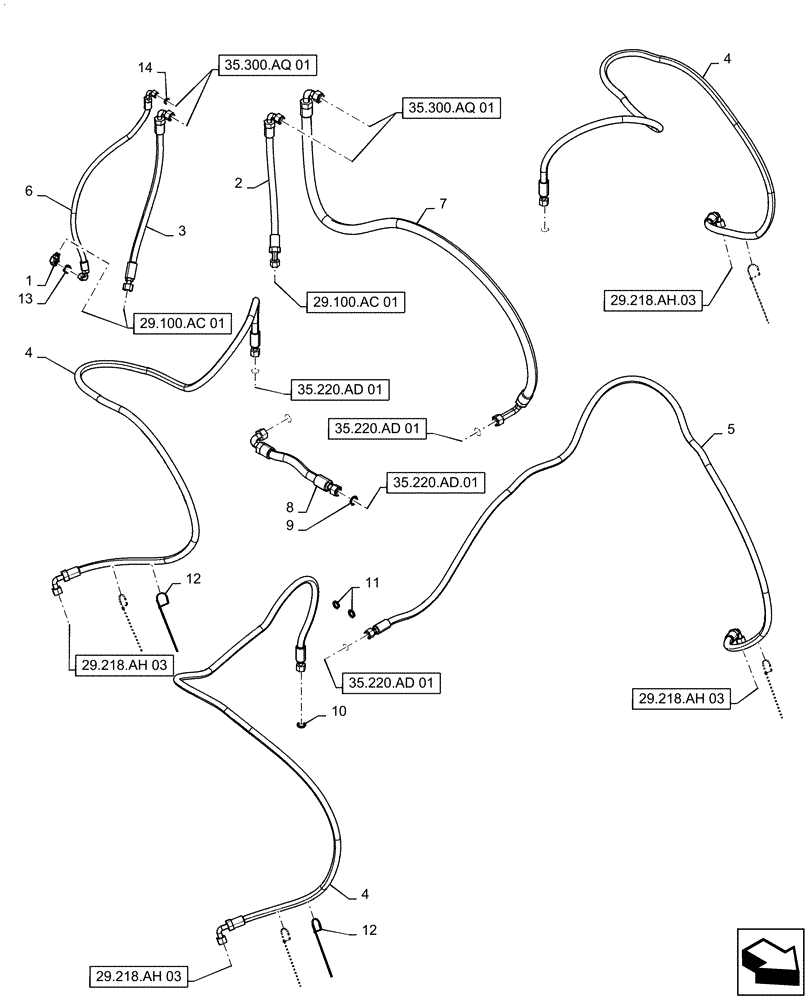

Запчасти Case IH PATRIOT 3340 (29.100.AO[01]) - CASE DRAIN LINES (29) - HYDROSTATIC DRIVE

1

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

1шт.

2

84577894

HOSE ASSY.

1-3/16" -12 ORFS Swivel Medium Elbow x 1-3/16" -12 ORFS Swivel 45 Degree Elbow x 3/4" ID x 30.5" Long, LH Pump To Tank

1шт.

3

84311312

HOSE ASSY.

1-3/16" -12 ORFS Swivel Medium Elbow x 1-3/16" -12 ORFS Swivel x 3/4" ID x 35.25" Long, RH Pump To Tank

1шт.

4

BN307807

HOSE ASSY.,19.05mm ID x 3657.6mm L, SAE 100R1

1-3/16" -12 ORFS Swivel Short Elbow x 1-3/16" -12 ORFS Swivel x 3/4" ID x 144" Long, Wheel Motor to Steel Line

3шт.

5

86986086

HOSE

1-3/16" -12 ORFS Swivel Short Elbow x 1-3/16" -12 ORFS Swivel x 3/4" ID x 160" Long, LH Front Wheel Motor to Steel Line

1шт.

6

87485502

HYDRAULIC HOSE

13/16" -16 ORFS Swivel Medium Elbow x 13/16" -16 ORFS Swivel x 1/2" ID x 41" Long, RH Pump To Tank

1шт.

7

84326099

HOSE ASSY.

1-7/16" -12 ORFS Swivel Medium Elbow x 1-7/16" -12 ORFS Swivel Long Elbow x 1" ID x 94-7/8" Long, Steel Line To Filter

1шт.

8

47688368

HOSE

1-7/16" -12 ORFS Swivel Short Elbow x 1-7/16" -12 ORFS Swivel x 1" ID x 20" Long, RH Steel Line to Rear Steel Line

1шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

3шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

4шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

2шт.

12

BN570007

STRAP

Black, 14-1/2"

8шт.

13

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

2шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

1шт.
