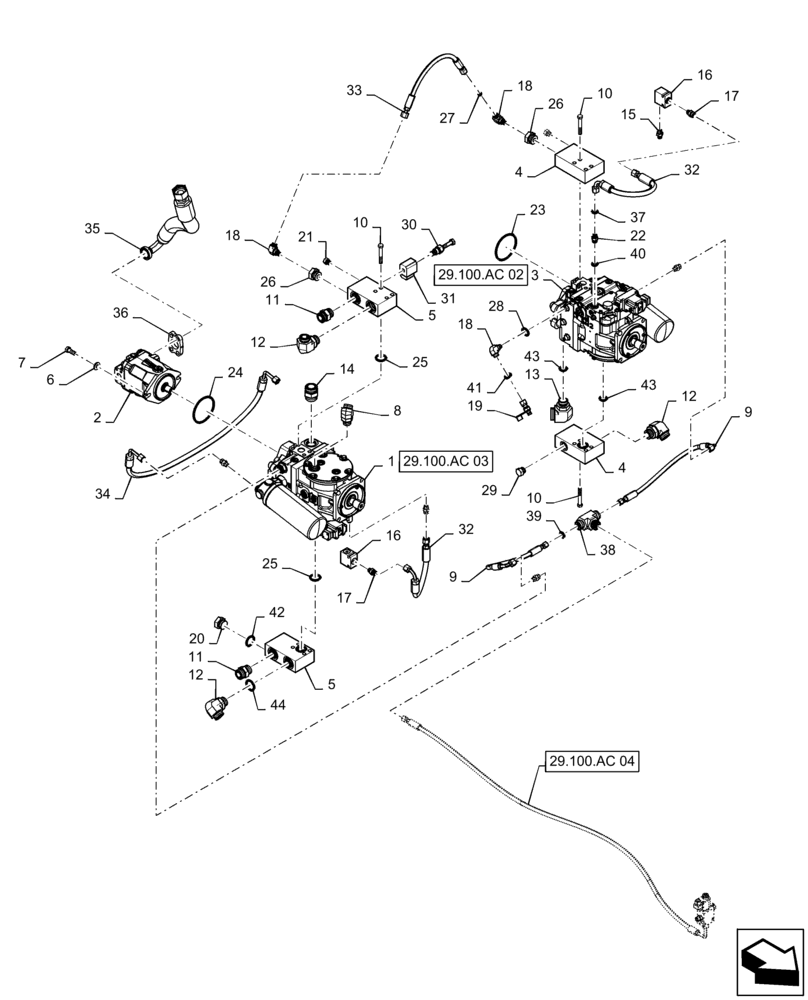

Запчасти Case IH PATRIOT 3340 (29.100.AC[01]) - HYDROSTATIC PUMP ASSY (29) - HYDROSTATIC DRIVE

1

84408213

HYDROSTATIC PUMP

RH, 90 Series, With 13 Tooth Coupler For Rear Mounted Pump

1шт.

See Fig 29.100.AC 03 For Service Parts Breakdown

1шт.

1

84408213R

REMAN-HYD PUMP

RH, 90 Series, With 13 Tooth Coupler For Rear Mounted Pump

1шт.

1

84408213C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

BN316492

PUMP,28 CC

Pressure Compensated

1шт.

2

BN316492R

REMAN-HYD PUMP

Pressure Compensated

1шт.

2

BN316492C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

84408212

HYDROSTATIC PUMP

LH, 90 Series, With 11 Tooth Coupler For Rear Mounted Pump

1шт.

See Fig 29.100.AC 02 For Service Parts Breakdown

1шт.

3

84408212R

REMAN-HYD PUMP

LH, 90 Series, With 11 Tooth Coupler For Rear Mounted Pump

1шт.

3

84408212C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

87544315

MANIFOLD

Control Block, Without Cavity

2шт.

5

87544316

MANIFOLD

Control Block, With Cavity

2шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5mm x 28mm x 4mm, DOR

2шт.

7

87342927

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

2шт.

8

BN302639

ELBOW

1 - 3/16" - 12 ORFS x 1 - 1/16" - 12 ORB

1шт.

9

BN309834

HYDRAULIC HOSE

9/16" - 18 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 1/4" ID x 19" Long, Both Pumps To Tee

2шт.

10

87342892

BOLT

.438" x 2.75", DOR

16шт.

11

BN57223

FITTING

1 - 7/16" - 12 ORFS x 1 - 5/16" - 12 ORB

4шт.

12

BN302574

ELBOW

1 - 7/16" - 12 ORFS x 1 - 5/16" - 12 ORB

4шт.

13

BN302576

ELBOW

1 - 11/16" - 12 ORFS x 1 - 5/16" - 12 ORB

1шт.

14

BN302659

FITTING

1 - 11/16" - 12 ORFS x 1 - 5/16" - 12 ORB

1шт.

15

BN313038

FITTING

9/16" - 18 ORB x 9/16" - 18 ORB

2шт.

16

87544312

VALVE

Shunt

2шт.

17

BN302646

FITTING

11/16" - 16 ORFS x 9/16" - 18 ORB

8шт.

18

BN302553

ELBOW

11/16" - 16 ORFS x 9/16" - 18 ORB

8шт.

19

BN307993

NIPPLE, LUBE

Nipple, Diagnostic, 11/16" - 16 ORFS

5шт.

20

BN60479

PLUG

1 - 5/16" - 12 ORB

3шт.

21

BN446048

PLUG

9/16" - 18 ORB

1шт.

22

BN302655

FITTING

1 - 3/16" - 12 ORFS x 1 - 1/16" - 12 ORB

1шт.

23

14461081

O-RING,3.237" ID x 0.103" Width

Mounting Seal Between Gear Pump And LH Hydrostat

1шт.

24

87487840

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

Mounting Seal Between Pressure Compensated Pump And RH Hydrostat

1шт.

25

BN52317

O-RING

Split Flange

4шт.

26

87271986

PLUG

1 - 5/16" - 12 ORB x 9/16" - 18 ORB

1шт.

27

87265840

ORIFICE

.075" - 6 Disc

1шт.

28

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

22шт.

29

BN21243

PLUG

Hex, 7/8" - 14, O - Ring

1шт.

30

BN300304

SOLENOID VALVE

Traction

1шт.

31

87267935

COIL

12V, DC

1шт.

32

87560255

HOSE

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 15" Long, Shunt

2шт.

33

47828492

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16" - 16 ORFS Swivel Long Elbow x 1/4" ID x 13 1/2" Long

1шт.

34

84518543

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Long Elbow x 11/16" - 16 ORFS Swivel Long Elbow x 3/8" ID x 37" Long

1шт.

35

343888A1

HOSE

1 - 11/16" - 12 ORFS Swivel Short Straight x 1 - 1/4" Code 61 Flange Short Elbow, 1 - 1/4" ID x 20", From Hyd Reservoir To Pressure Comp Pump

1шт.

36

BN316599

REPAIR KIT

1 - 1/4" Split Flange

1шт.

Incl 2 Clamps, 70921117, 4 Bolts, 9637916, 4 Lock Washers, 92-11044, 1 O Ring, 235757

1шт.

37

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

38

BN302511

FITTING

9/16" - 18 ORFS

1шт.

39

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

40

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

41

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

19шт.

42

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

3шт.

43

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

44

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

8шт.
