(90.151.AP[01]) - ARMREST CONSOLE, MOUNTING PARTS

Запчасти Case IH PATRIOT 3340 (90.151.AP[01]) - ARMREST CONSOLE, MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

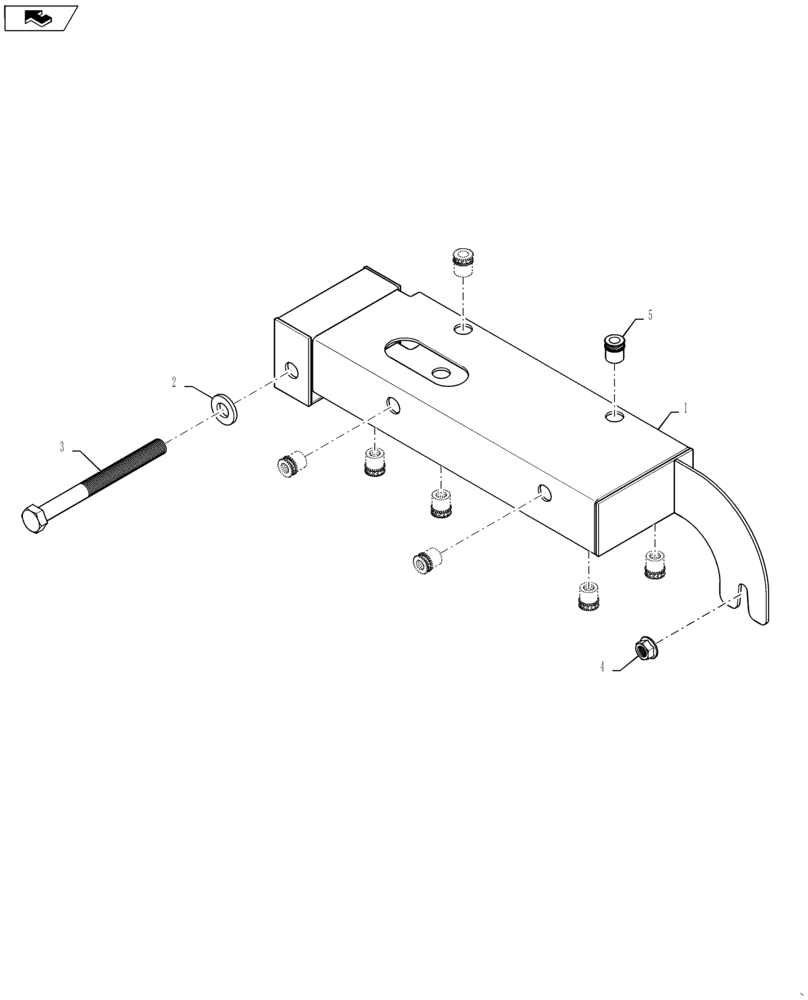

Схема запчастей Case IH PATRIOT 3340 - (90.151.AP[01]) - ARMREST CONSOLE, MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
1
4
2
5
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87270590

MOUNTING PLATE

Armrest Console

1шт.

2

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

3

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

1шт.

4

87344227

SERRATED NUT

M8, Flange, DOR

1шт.

5

408566A1

INSERT,M8

Knurled Threaded

8шт.

Выбрано товаров: 5
