(90.151.AC[02]) - DELUXE TRAINING SEAT ASSY

Запчасти Case IH PATRIOT 3340 (90.151.AC[02]) - DELUXE TRAINING SEAT ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

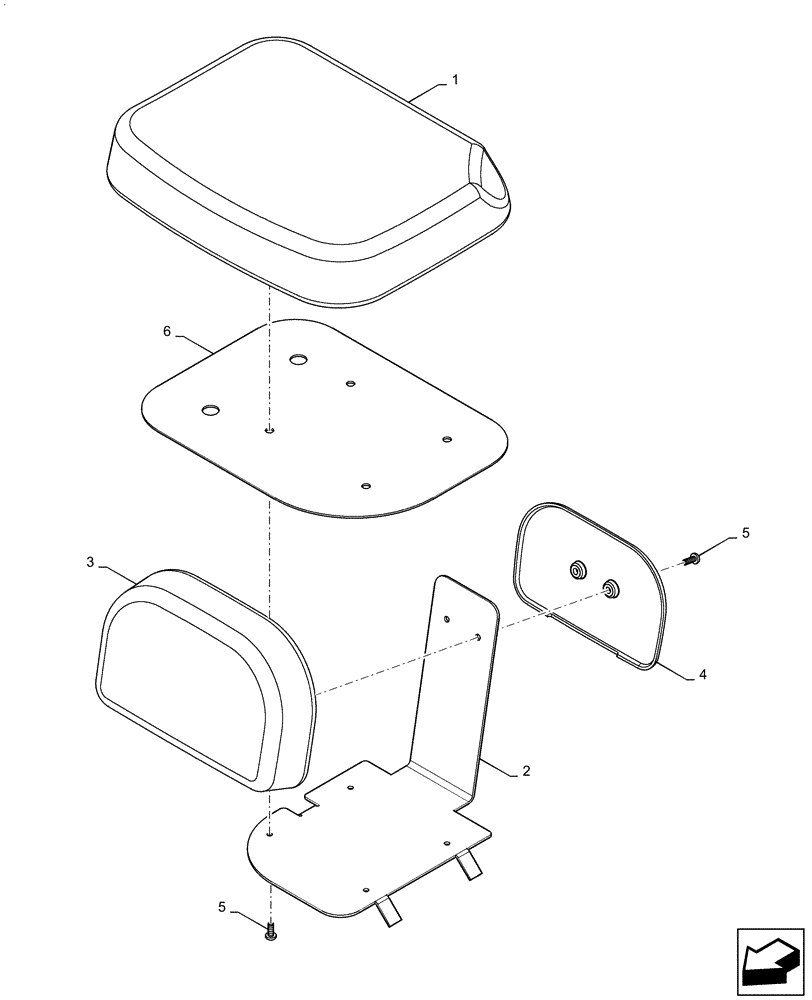

Схема запчастей Case IH PATRIOT 3340 - (90.151.AC[02]) - DELUXE TRAINING SEAT ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
4
3
5
5
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87748949

CUSHION, SEAT

Bottom, Cloth, Wheat

1шт.

2

296316A3

SUPPORT

Seat Frame

1шт.

3

87748950

BACKREST COVER

Cloth, Wheat

1шт.

4

359029A1

COVER

Back Rest

1шт.

5

840-2616

SCREW,Pan, M6 x 16mm, Cl 4.8

6шт.

6

381940A1

PANEL

Seat Base

1шт.
