(90.151.AC[01]) - TRAINING SEAT MOUNTING

Запчасти Case IH PATRIOT 3340 (90.151.AC[01]) - TRAINING SEAT MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

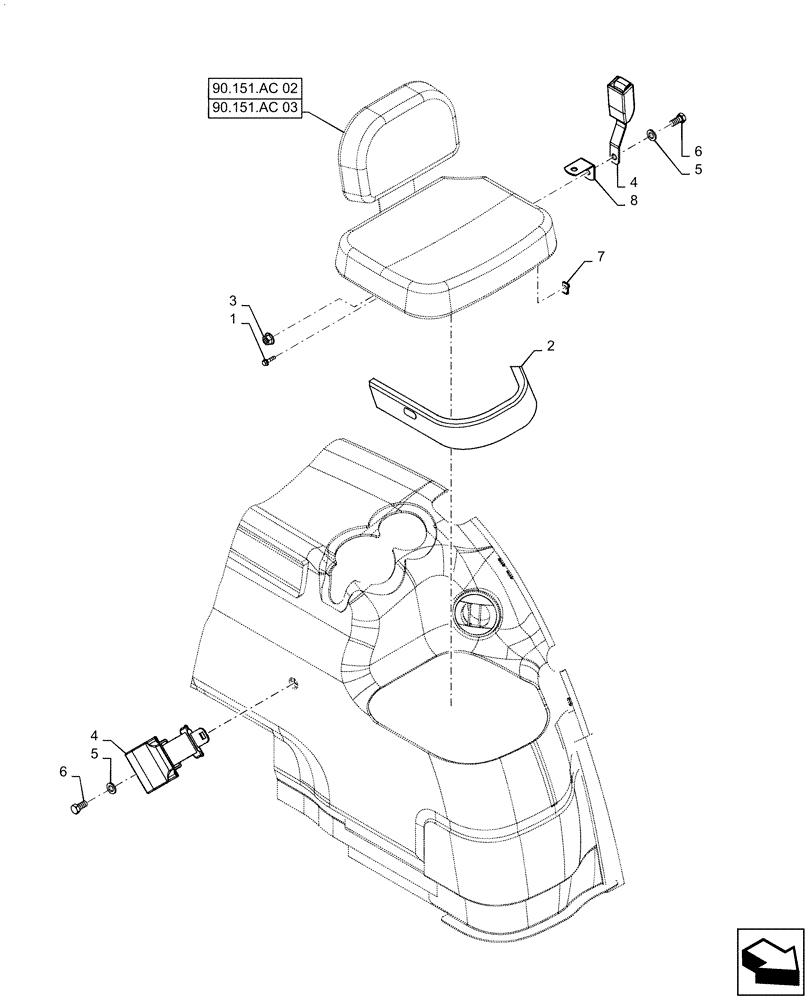

Схема запчастей Case IH PATRIOT 3340 - (90.151.AC[01]) - TRAINING SEAT MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.ac 03
3
6
2
90.151.ac 02
5
4
6
7
1
5
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

2

359039A1

BEZEL

Instructional Seat, Wheat

1шт.

3

825-51412

FLANGE NUT,M12, Flg Ser

1шт.

4

224808A1

SAFETY BELT ,48mm W x 1219mm L

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

6

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

7

833-40306

SPRING NUT,M6, U

2шт.

8

309099A1

BRACKET

Seat Belt Buckle Mount

1шт.

Выбрано товаров: 8
