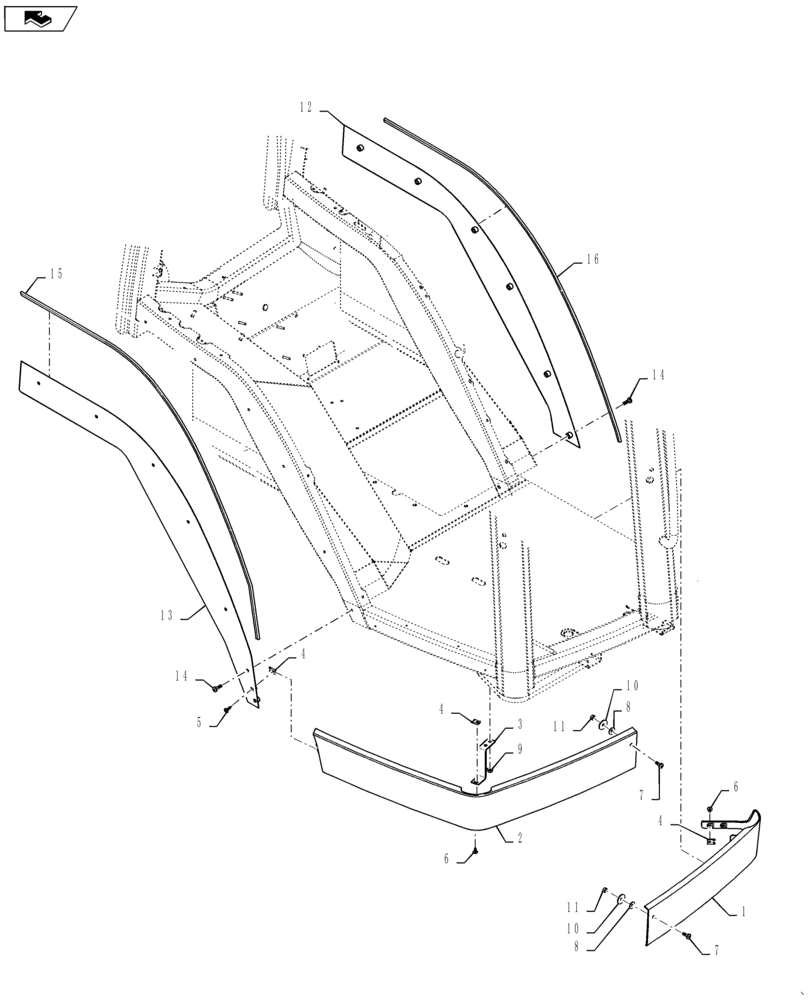

Запчасти Case IH PATRIOT 3340 (90.150.BJ[01]) - CAB SKIRTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87545531

SOFT TRIM

LH Exterior Trim

1шт.

2

258866A4

PANEL

Front RH Trim

1шт.

3

298464A1

BRACKET

Trim

1шт.

4

87016567

SPRING NUT,Tinn, U, #10

5шт.

5

1975919C1

SELF-TAP SCREW

#10-16 Truss Head With Washer

2шт.

6

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

3шт.

7

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

2шт.

8

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

10 x 22 x1.5MM, Poly

2шт.

9

87344227

SERRATED NUT

M8

2шт.

10

87310599

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

0.5 x 1.25 x 0.083, CST, DOR

2шт.

11

9991588

NUT,M8 x 1.25, Cl 8

2шт.

12

87734572

SKIRT

LH

1шт.

13

87734573

SKIRT

RH

1шт.

14

87648718

SCREW,Phil Pan Hd, M8 x 25mm, Cl 4.8

14шт.

15

87272128

SOFT TRIM

Rubber Edge, Bulk

1шт.

16

87272128

SOFT TRIM

Rubber Edge, Bulk

1шт.
