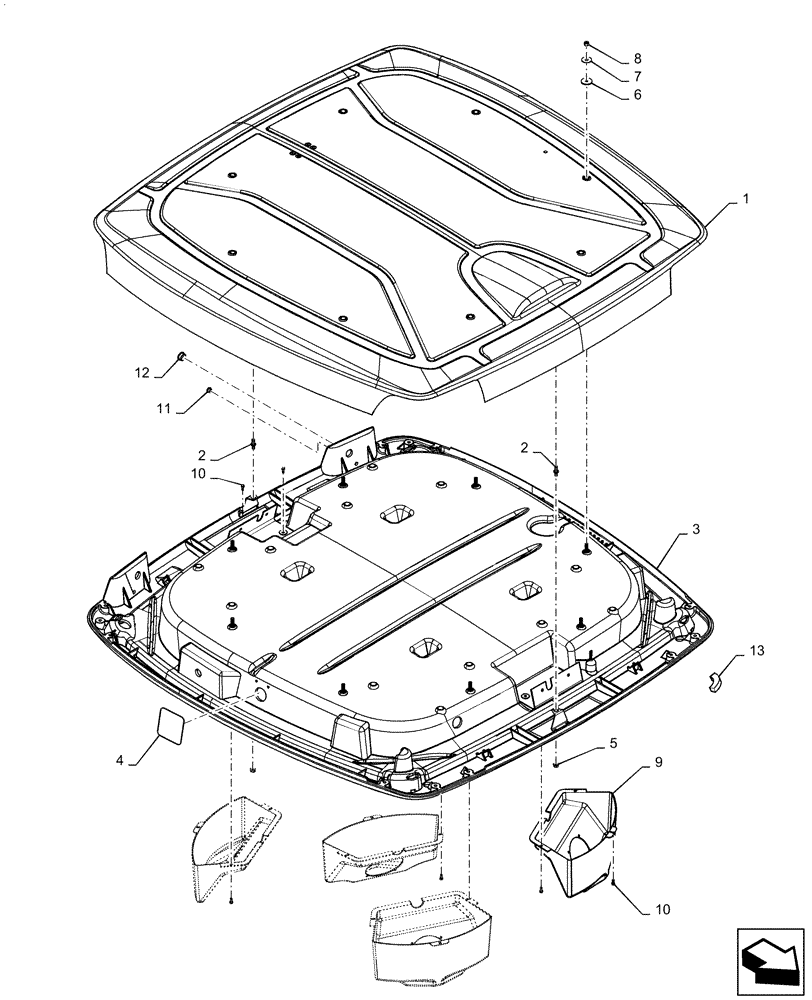

Запчасти Case IH PATRIOT 3340 (90.150.BG[01]) - CAB ROOF BEFORE SN YFT041440 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

433973A4

ROOF

Upper Panel

1шт.

2

449901A1

STUD,M8 x 1.25 x 37.5mm OAL

M8 x 1.25 End Collar

2шт.

3

84306551

ROOF

Lower Panel

1шт.

4

87711494

DECAL

Cover, Black

1шт.

5

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

6

221429A2

SPACER

Door Handle

8шт.

7

495-81140

WASHER,13/32" x 1 1/4" x .060"

8шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

9

433800A1

HOUSING

Speaker Enclosure

4шт.

10

758-5

SELF-TAP SCREW,Hex Hd, M5.5 x 15

12шт.

11

128209A1

PLUG

Black Plastic

2шт.

12

353-432

PLUG,7/8" Hole, Nylon

2шт.

13

365219A1

FOAM INSULATION

LH A Post / Roof

1шт.
