Запчасти Case IH PATRIOT 3340 (90.118.CB[03]) - MIDDLE WALKWAY, SN YFT041440, AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

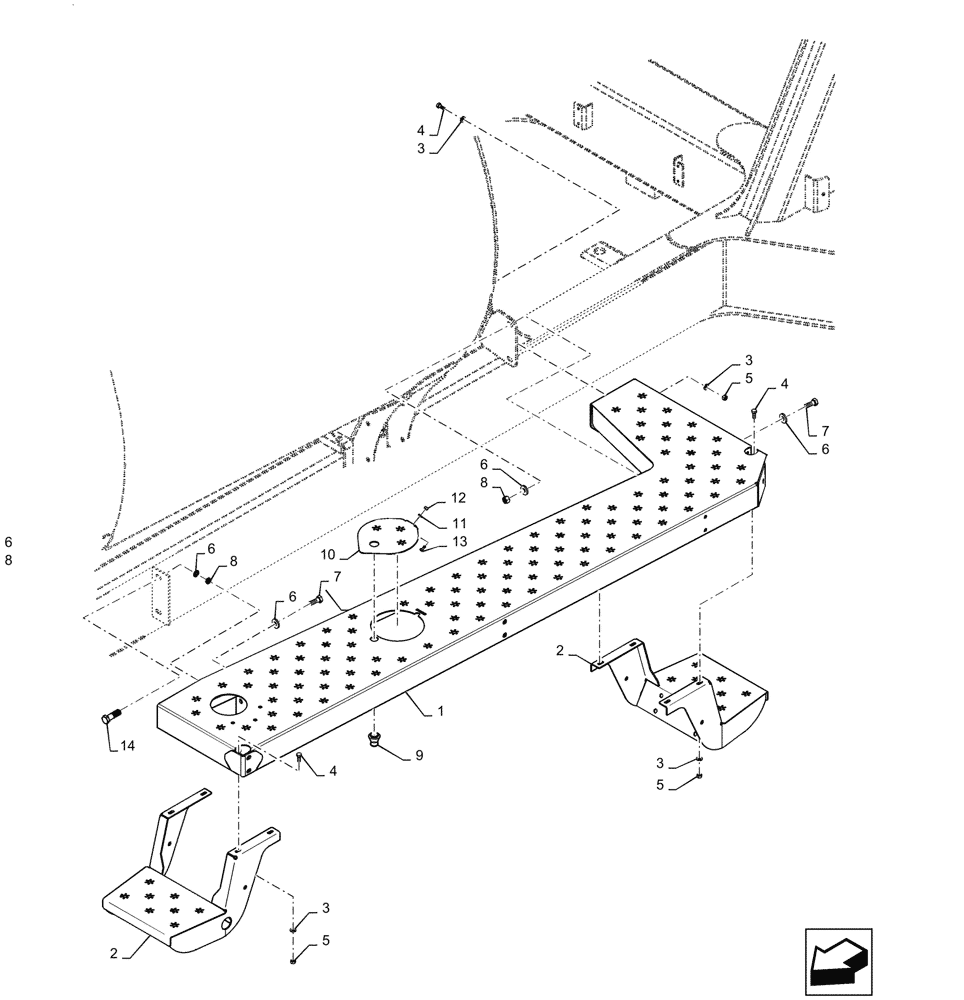

Схема запчастей Case IH PATRIOT 3340 - (90.118.CB[03]) - MIDDLE WALKWAY, SN YFT041440, AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
6
8
5
8
14
1
3
8
10
7
5
3
2
6
5
13
6
12
3
6
7
9
2
4
11
4
6
3

Артикул

Название

Примечание

Количество

1

47461269

WALKWAY

Middle Walkway

1шт.

2

47917733

STEP

Walkway

2шт.

3

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

12шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4MM DOR

8шт.

7

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

9

87270792

LATCH

Magnetic

1шт.

10

47649838

COVER

Access, Walkway

1шт.

11

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

1шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.

13

86980358

BOLT,Hex, M6 - 1 x 12mm, Cl 8.8, DOR

1шт.

14

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 14
