(90.118.CB[02]) - MIDDLE WALKWAY, BSN YFT041440

Запчасти Case IH PATRIOT 3340 (90.118.CB[02]) - MIDDLE WALKWAY, BSN YFT041440 (90) - PLATFORM, CAB, BODYWORK AND DECALS

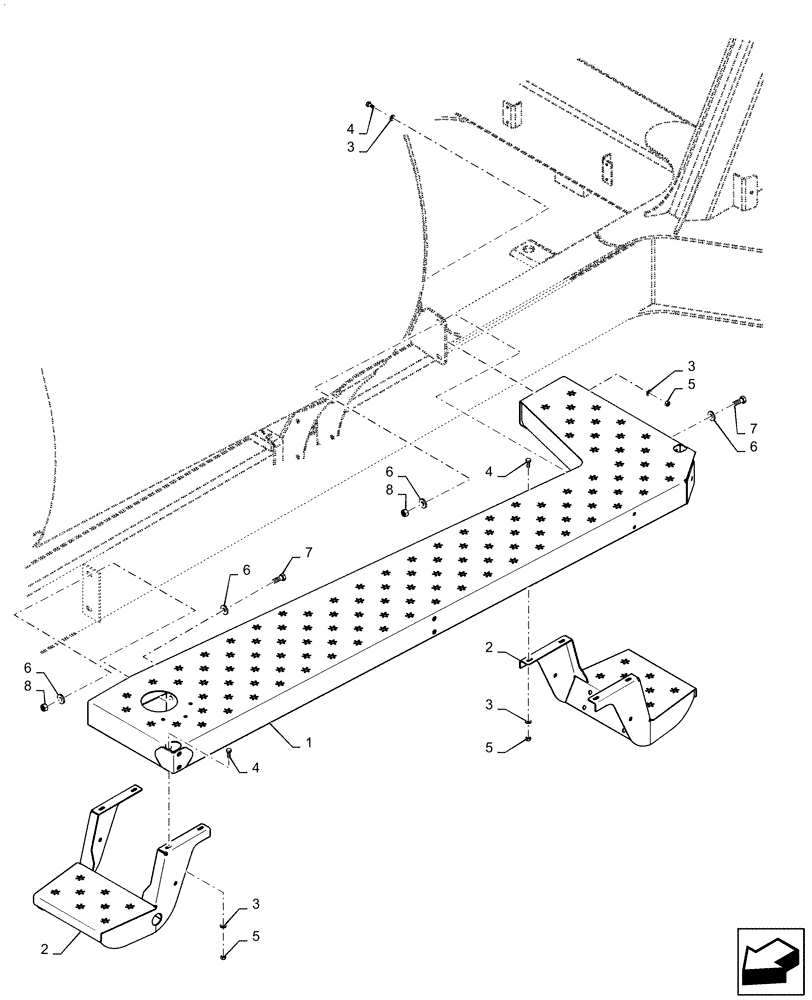

Схема запчастей Case IH PATRIOT 3340 - (90.118.CB[02]) - MIDDLE WALKWAY, BSN YFT041440 (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
8
7
3
6
4
6
7
3
5
1
3
3
5
8
4
6
2
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87581318

EXTENSION

Middle Walkway

1шт.

2

84206008

STEP

Walkway

2шт.

3

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

12шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4MM DOR

8шт.

7

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

Выбрано товаров: 8
