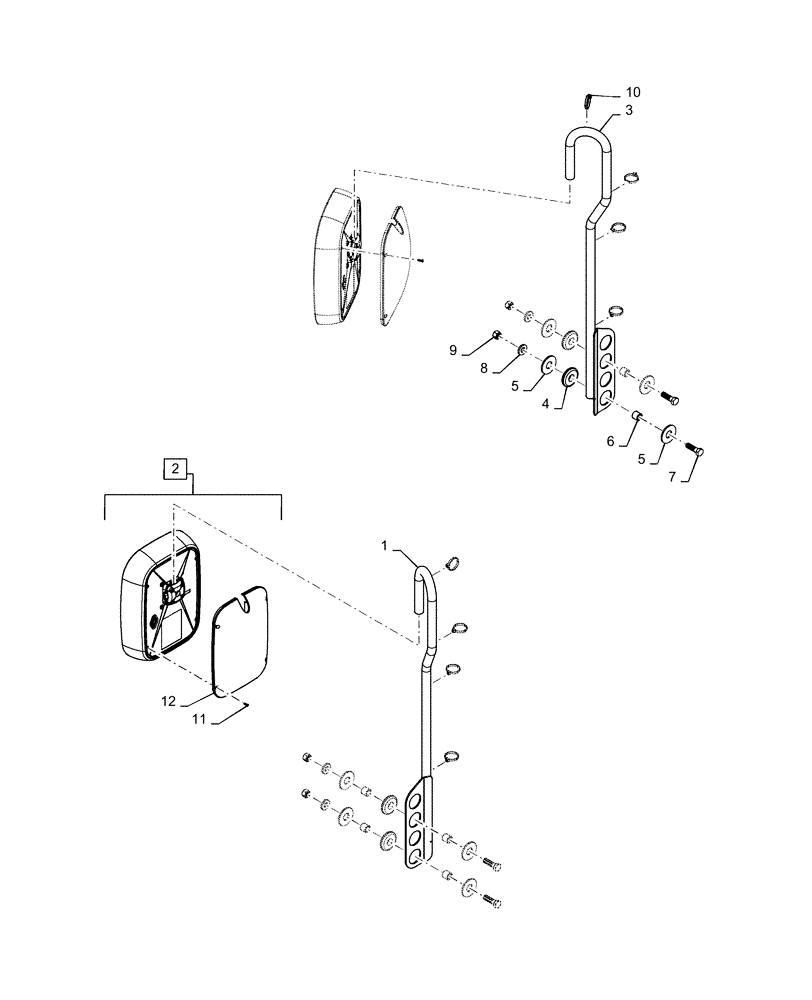

Запчасти Case IH PATRIOT 3340 (90.118.BM[03]) - ELECTRIC MIRROR, CRADLE MOUNTED (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47474384

MOUNT

RH Mirror

1шт.

2

87363066

MIRROR,238mm x 328mm

Head Incl 11 - 12

2шт.

3

47474382

MOUNT

LH Mirror

1шт.

4

BN320147

GROMMET

Rubber

4шт.

5

BN320165

WASHER

Mirror Bracket

6шт.

6

BN320164

BUSHING

Mirror Bracket

4шт.

7

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

8

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4MM, DOR

4шт.

9

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

10

529070

CABLE TIE,368.3mm L

17шт.

11

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

Cover

8шт.

12

87674626

COVER

Mirror Back

2шт.
