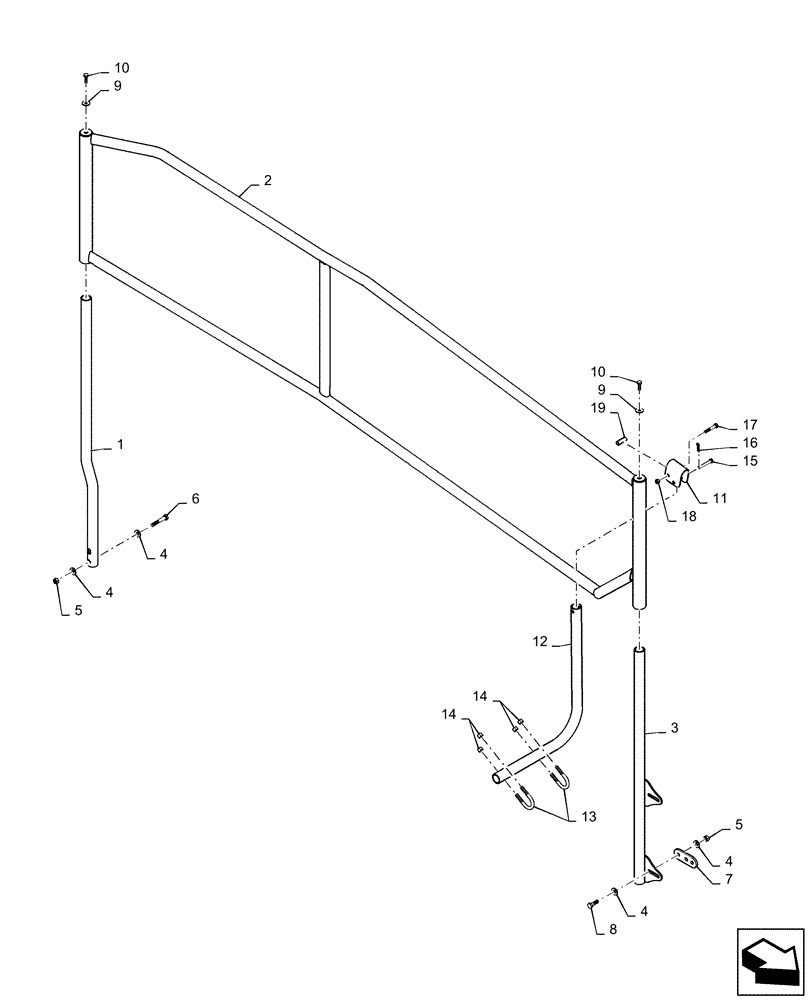

Запчасти Case IH PATRIOT 3340 (90.118.AX[01]) - HANDRAIL, MIDDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84480935

POST

Rear, Handrail

1шт.

2

84536535

HANDRAIL

Mid, Pivot

1шт.

3

87711627

POST

Front, Handrail

1шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

6

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

7

87715477

MOUNT

Adaptor

2шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

9

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

M8 x 25 x 2, CST, DOR

2шт.

10

87342022

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

11

84481960

ANCHOR

Handrail Support

1шт.

12

84559435

SUPPORT

Handrail

1шт.

13

87267464

U-BOLT

3/8"-16 x 1.5 ID x 2.50

2шт.

14

87343970

NUT,3/8"-16, G8, DOR

4шт.

15

87344039

PIN

CLEVIS M8 X 60 HTS DOR

1шт.

16

48090454

PIN

HAIR

1шт.

17

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

18

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

19

84482026

SPACER

1-1/4" Long

1шт.
