(90.100.AU[03]) - ENGINE HOOD

Запчасти Case IH PATRIOT 3340 (90.100.AU[03]) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

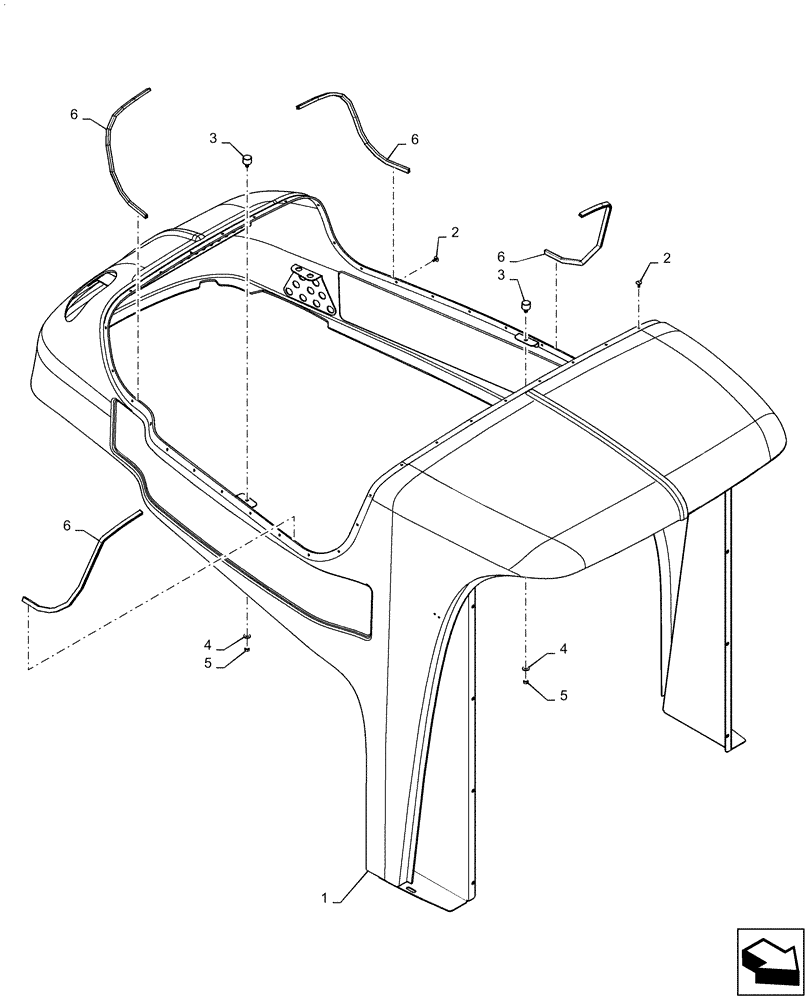

Схема запчастей Case IH PATRIOT 3340 - (90.100.AU[03]) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
6
6
3
5
5
6
2
6
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47362446

HOOD

Rear Engine

1шт.

2

87268898

RIVET

Nylon, Black, 1/4" x .80

40шт.

3

BN310002

BUMPER

1" OD x 1" High

2шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

5

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

6

BN2395049

SEAL

Bulk, Cut to Length Required

1шт.

Выбрано товаров: 6
