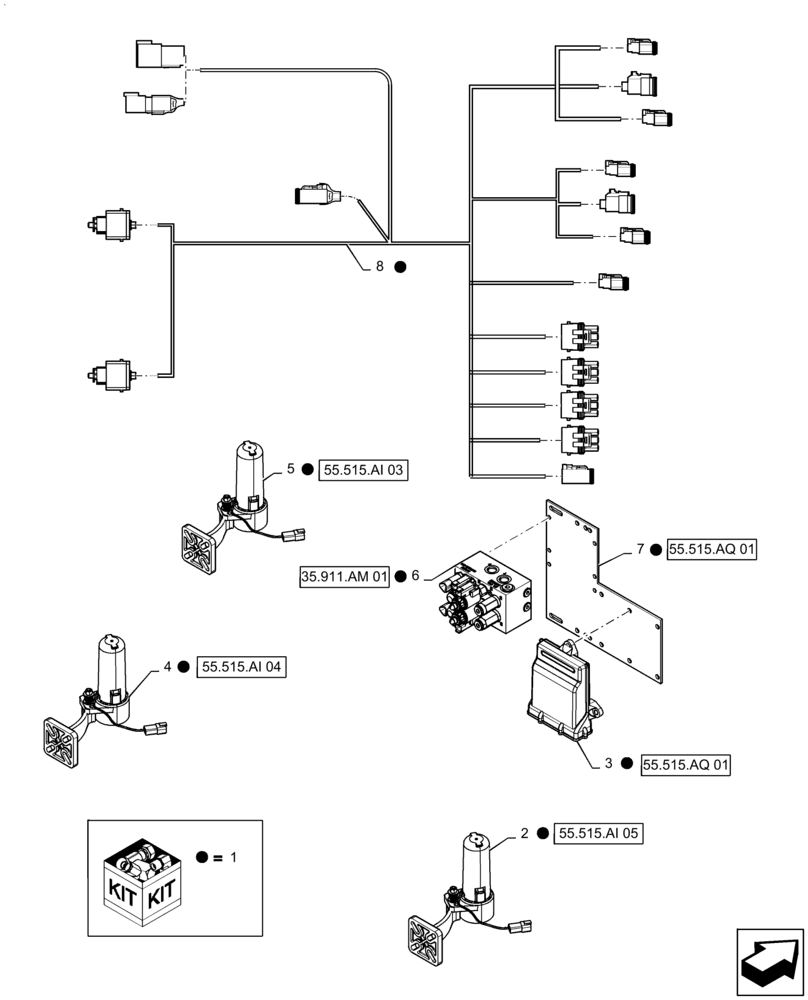

Запчасти Case IH PATRIOT 3340 (88.100.AA[04]) - AUTOBOOM KIT, 120 (88) - ACCESSORIES

1

84247474

SERVICE KIT

Autoboom, 120', Incl 2 - 8, Serial Range: -YGT044000

1шт.

1

48030077

Autoboom, 120', Incl 2 - 8, Start Serial: YGT044001

KIT

1шт.

2

87710685

SENSOR

RH

1шт.

See 55.515.AI 05 For Service Parts

1шт.

3

87717349

MODULE

Node

1шт.

See 55.515.AQ 01 For Service Parts

1шт.

3

87717349R

REMAN-MODULE

Node, Serial Range: -YGT044000

1шт.

3

87717349C

CORE-MODULE

Return Number, Serial Range: -YGT044000

1шт.

3

48030111

ECU

Node, Start Serial: YGT044001

1шт.

4

87710686

SENSOR

LH

1шт.

See 55.515.AI 04 For Service Parts

1шт.

5

84247475

SENSOR

Center

1шт.

See 55.515.AI 03 For Service Parts

1шт.

6

84299098

HYDRAULIC VALVE

Autoboom

1шт.

See 35.911.AM 01 For Service Parts

1шт.

7

87718266

MOUNTING PLATE

Valve

1шт.

See 55.515.AQ 01 For Service Parts

1шт.

8

84142277

WIRE HARNESS

Autoboom

1шт.
